Steel filter cloth packs

Product Code: 1774
Category:Filter Cloth Packs
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter disc
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Steel filter cloth packs

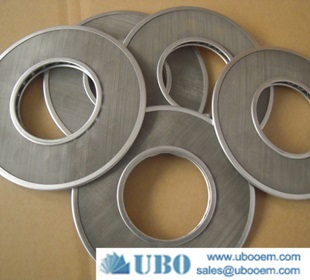

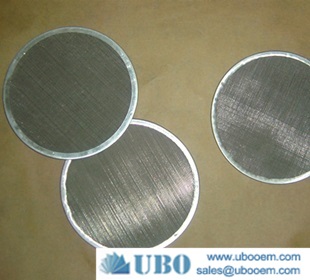

    Our steel filter cloth packs are made of metal wire mesh in single layer or multi-layer. Double layers or three layers,Can be classified into round, square, kidney shape, oval and other special shapes according to the outside designs.
    It is made of Sintered 5-layer or multi-layer Stainless steel wire mesh laminates, it take the advantages of good permeability, high holding dirty capacity, large filter area, long service life, high temperature resistance and corrosion resistance, and cleanable, can be used for many times, it is widely applied in the filtration system of petroleum and chemical industry.

Application for Steel filter cloth packs:

All kinds of high temperature, catalyst , corrosive liquid filtration for petrochemical industry.
All kinds of melt polymer filtration in chemical fiber film fields
high pressure backwashing oil purifier
All kinds of catalyst filtering separation for Pharmaceutical Industry
Gas distribution, liquid Bed orifice plate material

Features for Steel filter cloth packs:

1. Stable high filtering precision: large extension of filtering precision(1-100 μm), the hole is not out of shape easily.
2. High strength, good rigidity: the fourth and fifth layers are the supporting layers, the six layer is the reinforcing layer, so it has high pressure resistance, mechanical strength, easy installation and easy to use.
3. High temperature resistance and corrosion resistance: maximum 480°C.
4. convenient to wash and backwash: It can be used with longer service span.

Steel filter cloth packs

Specification of the Steel filter cloth packs


Mesh Wire dia (mm) Material (AISI)
12*64 0.58/0.40 304 ,316
24*110 0.36/0.25 304 ,316
14*88 0.50/0.33 304 ,316
30*150 0.18/0.14 304 ,316
40*200 0.14/0.11 304 ,316
50*250 0.10/0.071 304 ,316
80*700 0.06/0.05 304 ,316
165*800 0.071/0.04 304 ,316
200*1800 0.05/0.03 304 ,316
325*2300 0.03/0.025 316L
400*2800 0.03/0.02 316L

Production And Sales of Steel filter cloth packs


Steel filter cloth packs
