|Category:||Sieve Plate Screen|
|Material:||stainless steel 304,304L,304HC,316,316L,321,430 or as per your request|
|Properties:||wedge wire screen|
|Application:||water treatment, oilfield, mining, water well,food industry, filtration|
Wedge Wire type wedge v wire screen plate for wastewater treatment are used in a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction. Triangle wire wedge wire screen panel can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applications.
1) Wedge wire screen style isn't easy to be locked
2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .
Use in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

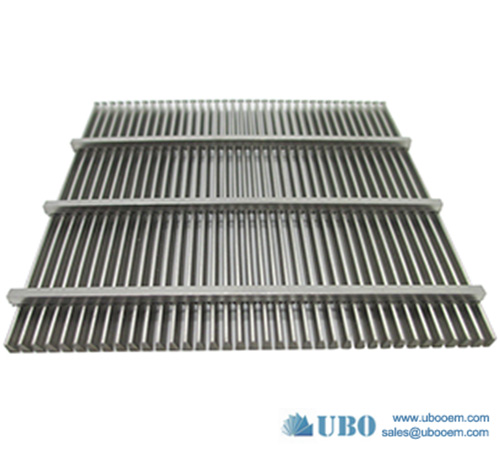

|Wedge wire screen panel|
|Material:||Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)|

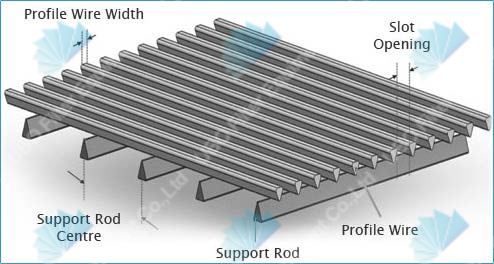

|Wedge Wire (mm):||Width : 1.50 1.80 2.30 3.00 3.30 3.70|
|Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00|
|Support Rod (mm):||Width : 2.30 3.00 3.30 3.70|
|Height : 2.70 3.60 4.70 5.60 6.30|
|Round : 2.50mm -- 6.0mm|
|Diameter ranging||from 1 inch -----45 inch.|
|Length:||lengths up to 6 meters.|
|Slot size:||0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.|
|Note: Other specifications can be customized according to your requirement|
