Harp Screens

Product Code: 1868
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Harp Screens


Stainless steel Flat wedge screen panel is made of stainless steel V shaped rod or Convex shape wire with an unique welding process, offering great strength precision ,long service life . The Screen have a perfectly flat and smooth surface with rectangular openings , also named flat wedge wire screen ,flat wedge wire screen panel or wedge wire .

Harp Screens



Applications for Harp Screens:



sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.



Features for Harp Screens:



1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

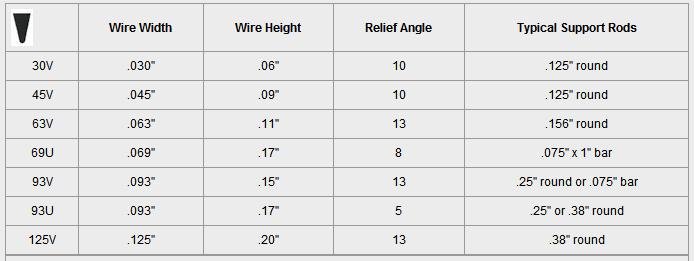

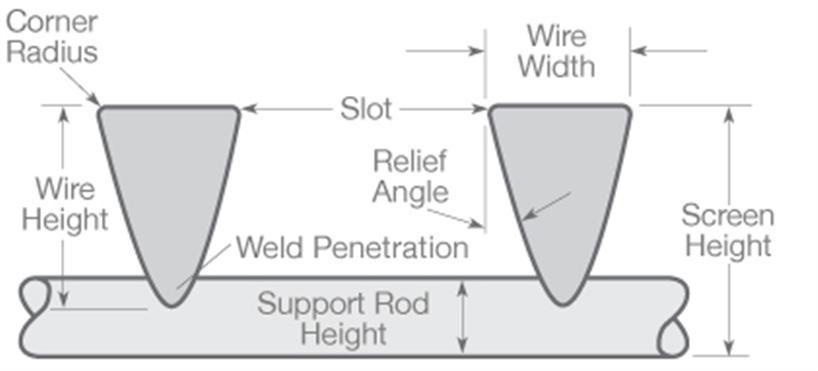

About the V-Wire Profiles:



Water well stainless steel sand free screen consist of V-shape profile wire and the longitudinal support rods, each intersecting point of wires of Johnson Well Screens is fusion welded, so it has sturdy construction and good mechanical property. The V-shape section plane of Johnson Well Screens can avoid blockage, and make sure of the unimpeded water.

Harp Screens

Specification of the Harp Screens


Harp Screens


Harp Screens


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70;
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70;
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
