flat panel wedge wire screens

Product Code: 1853
Category:Sieve Plate Screen
Material:stainless steel
Properties:wedge wire screen

Email to Us Start Order

Author: Maria

Description of flat panel wedge wire screens

Our high quality custom built flat panel wedge wire screens, manufactured either framed or unframed with a variety of support rods, offers a high strength, long lasting, economical solution to the market. They come in commonly shaped wedge wire profiles and offer good screening efficiency across a wide range of applications. Flat wedge wire screens are excellent for use to de-water, de-slim, drain and rinse, wet classify, dry classify, filter, dry and cool. They are recommended for use in any application that requires efficient liquid-solid separation.


Features of flat panel wedge wire screens


Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.

Applications of flat panel wedge wire screens

flat panel wedge wire screens are used in Petrochemical, Fish Diversion, Pulp & Paper, Waste Water, Food, and Architectural industries.

-- Resistance welded to offer high strength, small slot openings and large open area

-- Wedge wire widths starting at .030”.

-- Manufactured slot openings from 0.005”.

-- Standard in 304 and 316 stainless.

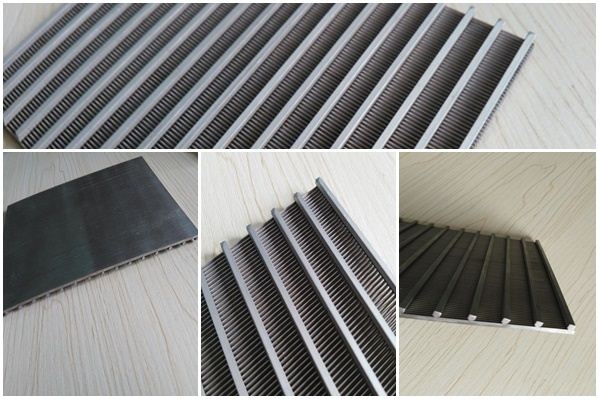

       flat panel wedge wire screens


Specification of the flat panel wedge wire screens

Panel Screen Standard Specifications:

Slot size (mm): 0.025mm 0.10, 0.15, 0.2, 0.25, 0.30-3mm

Open area: up to 60%

Material: low carbon, low carbon galvanized steel (LCG) steel , stainless steel (304 etc.) Lengths up to 6 meters

Diameter: ranging from 25 to 800mm

End connection: plain beveled ends for butt welding or threaded

Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)

Slot (mm): 0.025 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 and so on.

Production And Sales of flat panel wedge wire screens

Package: in wood case

Delivery: 10-20 days
