Flat Wedge Wire Screen Panel

Product Code: 1803
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Flat Wedge Wire Screen Panel


Flat wedge wire screen panel / stainless steel material welded wedge wire screen / flat welded screens in a large variety of surface and support wire combinations, that can be applied for simple screen plates to heavily reinforced reactor internals.


The Vee wire screens can be manufactured with a variety of rectangular or round support rods. The wire width and relief angle is determined by weight per square foot and efficiency requirements. This screen decking magnifies vibration with drum-tight tension and withstands the violent vibrating action. These industrial profile screens are also used in fluid bed dryers, coolers and much more.

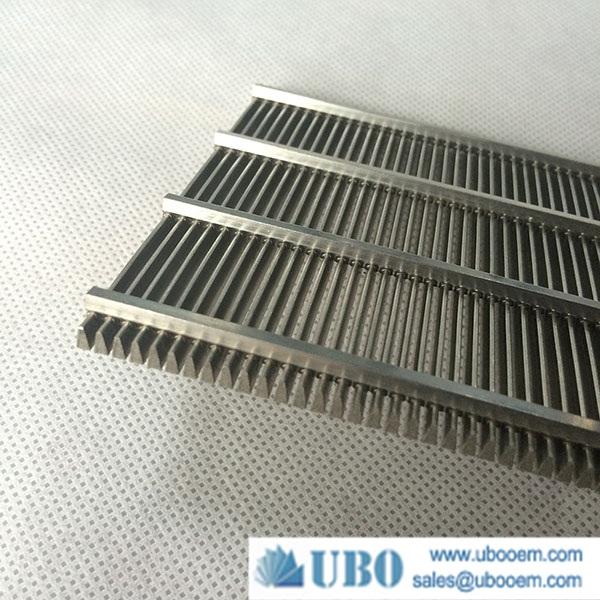

Flat<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Panel



Application for Flat Wedge Wire Screen Panel:



Vee wire screens are used for wide range of applications such as sizing, classification and de-watering in mining and other industries. These are used for coal & iron ore beneficiations when fitted on the vibratory machine.



Features forFlat Wedge Wire Screen Panel:



1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles

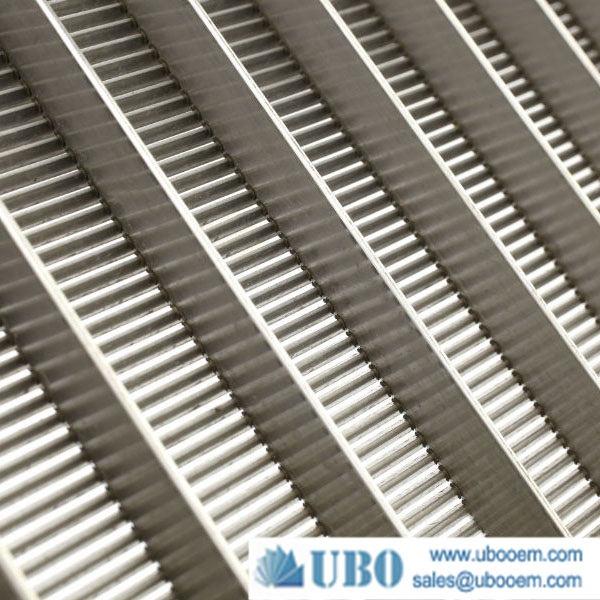

Flat<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Panel

Specification of the Flat Wedge Wire Screen Panel


Flat<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Panel


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
