Welded ss wedge wire brewery lauter tun false bottom
[SY_CPTU2]

Welded ss wedge wire brewery lauter tun false bottom

Product Code: 3660
Category:Lauter Tun Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Author: Eva
Email:sales@ubooem.com

Description of Welded ss wedge wire brewery lauter tun false bottom


Welded ss wedge wire brewery lauter tun false bottom is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot.Welded ss wedge wire brewery lauter tun false bottom represent the state-of-the-art i mash filtration technology for brewhouses.Our client uses only Welded ss wedge wire brewery lauter tun false bottom in all of pur mash tuns.The principal behind the v-wire is that there is a large surface area contacting the mash bed,while under the contact surface the filter is a triangle in cross section.The surface area away from the contact layer falls away very quickly,minimizing the risk of clogging the filtration screen,while allowing free flow of wort through the screen.Less efficient alternates to v-wire are lasrer cut,drilled or punched plates of steel that reduce efficiency and do not employ the well-known advantages of v-wire in your mash tun.

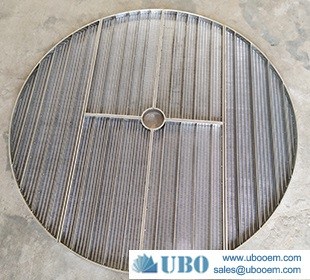

lauter tun screen



Primary tanks/kettle/brewing system uses for welded ss wedge wire brewery lauter tun false bottom

• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retro-fit or new installations

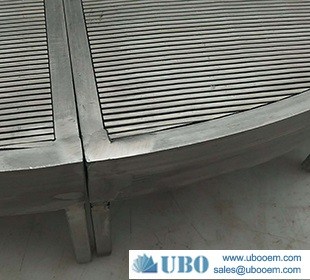

lauter tun false bottom screen


The Features of the Lauter Tun False bottom screen

• Excellent separation properties— high
resistance to clogging
• V-shape provides exceptional open area
• Easy to clean, providing reduced
maintenance costs
• Superior strength, delivering longer
service life
• Standard slot openings are .028” or .030”
(other sizes available such like 0.7mm, 0.75mm, 0.8mm, 1.0mm, customized)
• Custom sizes and framing options

Specification of the Welded ss wedge wire brewery lauter tun false bottom


Lauter tun false bottom screen for brewery

Normal Name

Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range

(MM)

200mm To 2500mm. Diameter Customized

Normal Diameter

(MM)

29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc

Normal Slot

(MM)

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM)

8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



Sections & shape

1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

Wedge wire

(MM)

2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod

(MM)

3x5MM V shaped Support Rod, 3x5mm Square Support RoD

Strengthen Rod

(MM)

Thickness and Height according to the diameter and screen thickness

Note

Usually customized.

Production And Sales of Welded ss wedge wire brewery lauter tun false bottom


Transportation
