Lauter Tun Screens

Product Code: 1841
Category:Lauter Tun Screen
Material:Stainless Steel 304,316,316L
Properties:Wedge Wire Screen
Application:water,oil,liquid filtration,solid filtration, papermaking,industry etc

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Lauter Tun Screens


A wedge wire support grid provides a false bottom in a lauter tun in many breweries.

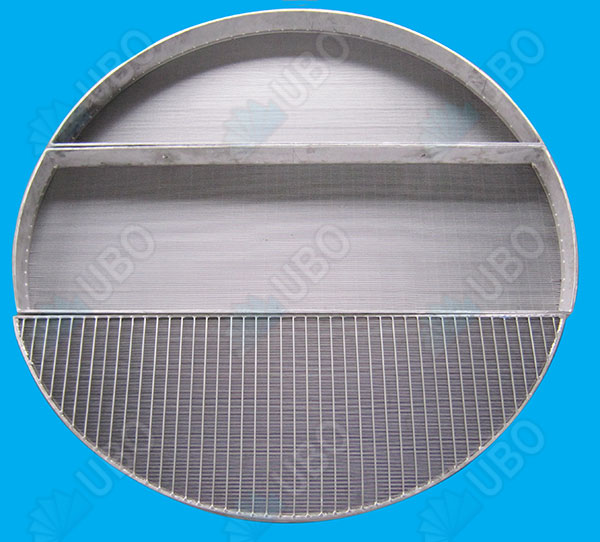

The stainless steel wedge wire screen can be made in sections to fit through a man-way.  The outside of each section is banded with steel bar and lengths of steel strips are supplied to provide a seal between sections. Typically, the screen has .030" to .040" slot openings to hold back the solids and allow liquids to pass through.

The lauter tun screen sits on a ledge that is positioned on the inside diameter of the tank. It may also be necessary to have support beams depending on loading and tank diameter.

Example of Lauter Tun screen description
48 3/4" OD made in 3 sections
93V wedge wire on 1/8" x 7/8" support rods at 2" centers
.030" nominal slot openings
3/16" x 1" banding around each section
all 304 stainless steel he solids, not the false bottom wedge wire screen, form a filtration medium and hold back small
solids, allowing the otherwise cloudy mash to run out of the lauter tun as a clear liquid.



Features of Lauter Tun Screens



-- High strength

-- Excellent performance

-- Fine finish

-- Typical static panels, including architectural panels, will have a surround frame welded around the screen

-- Typical vibrating panels will have angles welded down two sides of the panel and rubber vibration dampening strips glued to the top and bottom of the screen



Usages for Lauter Tun Screens


• Lauter tun screen

• Mash tun screen

• False bottom screens

• Custom made screens for retro-fit or new installations

Lauter Tun Screens

Specification of the Lauter Tun Screens


Example of Lauter Tun screen description

48 3/4" OD made in 3 sections

93V wedge wire on 1/8" x 7/8" support rods at 2" centers

.030" nominal slot openings

3/16" x 1" banding around each section

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note: Other specifications can be customized according to your requirement
