Lauter Tun False Bottom for Brewery

Product Code: 3493
Category:Lauter Tun Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:lauter tun screen
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of Lauter Tun False Bottom for Brewery


wedge wire filter plate for breweries lauter tun consist of shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.

wedge wire filter plate for breweries lauter tunwedge wire filter plate for breweries lauter tunwedge wire filter plate for breweries lauter tun

Advantage of wedge wire filter plate for breweries lauter tun

1. Continuous slot screens, stronger and more durable
2. More open area, very precise openings
3. Virtually non-clogging and reduce media abrasion
4. Easier installation and long-term operating and cost benefits

Uses of wedge wire filter plate for breweries lauter tun

• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retro-fit or new installations.

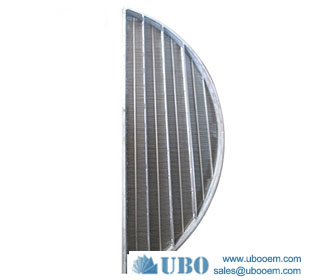

wedge wire filter plate for breweries lauter tun

Specification of the Lauter Tun False Bottom for Brewery

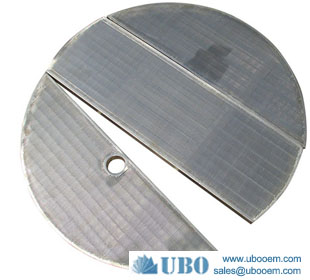

wedge wire filter plate for breweries lauter tun

Normal Name

Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range

(MM)

200mm To 2500mm. Diameter Customized

Normal Diameter

(MM)

29, 30, 35, 37, 40, 45, 47, 59, 63, 74, Etc

Normal Slot

(MM)

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM)

8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



Sections & shape

1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

Wedge wire

(MM)

2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod

 (MM)

3x5MM V shaped Support Rod, 3x5mm Square Support Rod

Strengthen Rod

(MM)

Thickness and Height according to the diameter and screen thickness

Note

Usually customized.
