| Category: | Sieve Bend Screen |
| Material: | stainless steel |
| Properties: | wedge wire screen |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
UBO'S V-Wire flat screens can be used in a variety of applications ranging from classifying to recovering usable products that would end up in sewer line to capturing solids from effluents.
They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load. Widely used for fiber removal in Starch industry.
Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
A continuous slot screen sieve bend gives you a great amount of open area, is significantly more affordable and requires less maintenance than vibrating or rotary drum options.

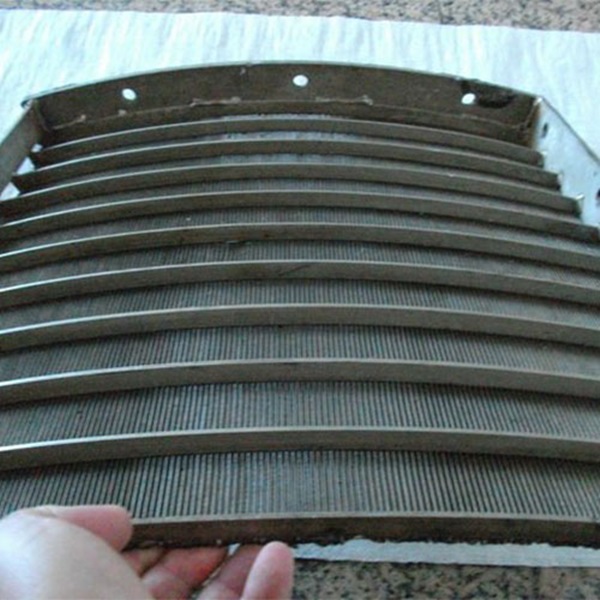

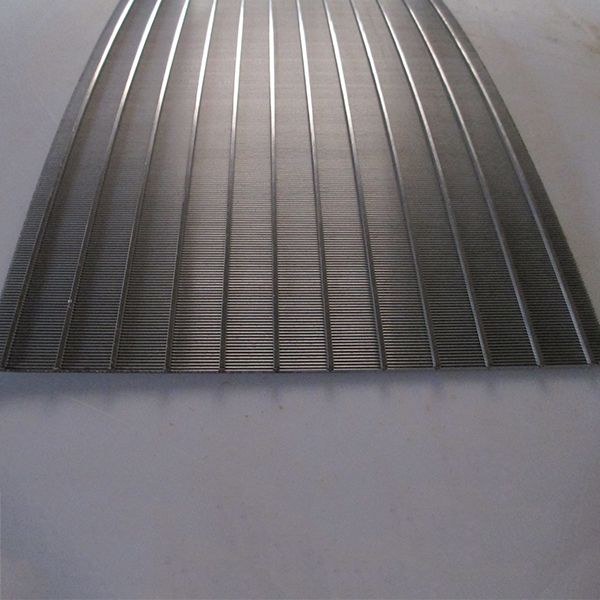

It's made of support rod and wire , wire shape is normally triangle wire ,
support rode shape could be triangle wire, round wire , cuboid wire .
Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Materials :SS 304,316,316L, Stainless steel and carbon steel.
Wire Diameter: 0.5mm-5mm
application:application in water treatment,oilfield,mining,food industry,chemical industry,papermaking industry,decoration.
Surface treatment: polishing ,chroming
characteristics:High filtering accuracy , High strengh and durability
|
Specification (wedge wire):
|
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
|
Specification (support rod):
|
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
|
|
Note: other specifications available as per request
|
|
|
Slot size
|
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
|
|
Material:
|
galvanized low carton (LCG), stainless steel (304,316 etc.)
|
|
Length
|
up to 6 meters.
|
|
Diameter
|
from 25mm to 1200mm.
|
|
End connection
|
Plain beveled ends, flanged or threaded couplings
|
