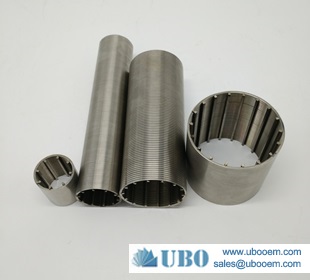

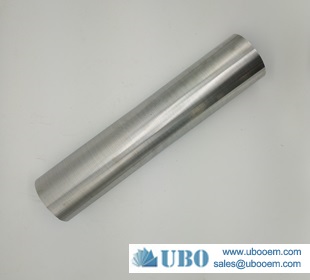

Stainless Steel Wedge Wire Screen used for geothermal well

Product Code: 2721
Category:Wedge Wire Screen Cylinders
Material:Stainless Steel
Properties:wedge wire screen
Application:used for geothermal well

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless Steel Wedge Wire Screen used for geothermal well

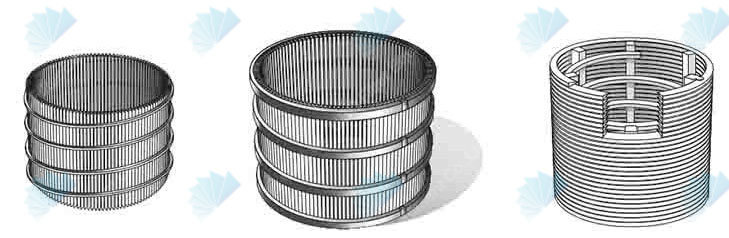

Stainless Steel Wedge Wire Screen is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities while at the same time keeps the majority of sand and gravel out of the well.



Application of Stainless Steel Wedge Wire Screen used for geothermal well



Main use as direct filter elements in reversible flow filters and wedge type filters for numerous applications:

-- Beverage industry

-- Oil, cooling liquids & fuel filtration

-- Chemical industry

-- Water purification

-- power plants

-- mechanical engineering



Advantages of Stainless Steel Wedge Wire Screen used for geothermal well



A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.

A uniform and efficient well development due to the continuous slot opening.

Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Stainless Steel<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> used for geothermal well

Specification of the Stainless Steel Wedge Wire Screen used for geothermal well


Stainless Steel<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> used for geothermal well

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Stainless Steel Wedge Wire Screen used for geothermal well


Stainless Steel<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> used for geothermal well
