|Category:||Wedge Wire Screen Cylinders|
|Properties:||wedge wire screen|
|Application:||water,oil,liquid filtration,industry filtration|

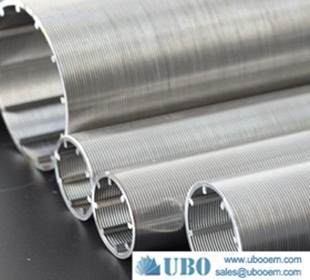

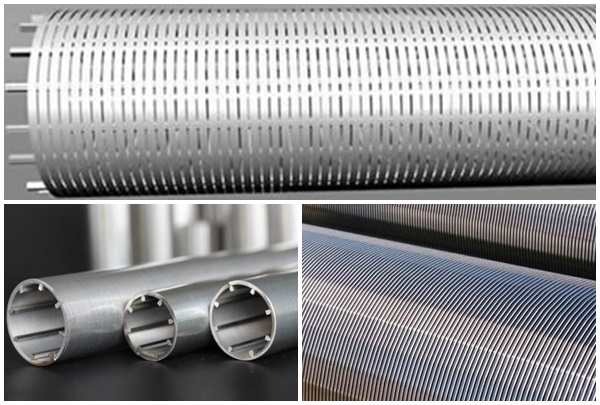

The stainless steel water intake screens is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.
1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation.
3) Reduce the abrasion of the pump.
4) Extend the life span of well.

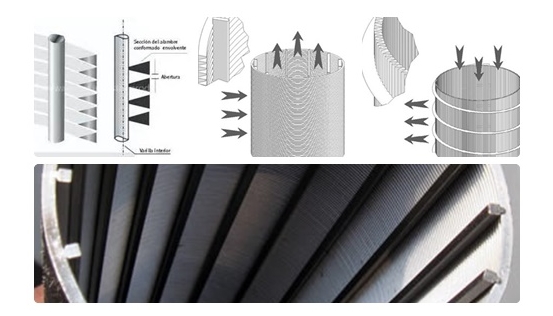

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2) A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3) A uniform and efficient well development due to the continuous slot opening.
4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
Use for the oil well, water well, geothermal well, sewage and industrial wastewater disposal plants, food equipment, liquids filtration,cleaning treatment.
Material:stainless steel 304,316,316l,320
Length: MAX 6 meters.
Wire diameter: 1.5X2mm, 2x3mm, 3x6mm
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Slot Width Tolerance
Slot width shouldn't exceed 0.02mm and shouldn't less than 0.01mm compare to standard size when slot width is below 0.2mm
Slot width should be controlled within ± 0.02mm compare to standard size if slat width is bigger than 0.25mm
Hard plating the wedge bar surface, plating thickness is 0.20-0.30mm. surface hardness >HRC : 60-66 (HV700-900)Product structure : wedge wire screen and stainless steel pipe
