Water Intake Screens

Product Code: 2252
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:water strainer&nozzle
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Description of Water Intake Screens

    We now manufacture high quality Water Intake Screens made with sturdy, clog-resistant WEDGE-FLOW, custom designed and engineered to your specific application.

    WEDGE-FLOW is our own brand of industrial grade wedge-wire. It is specially constructed to resist clogging, while maximizing open area and ensuring required particle retention through precise slot sizes. Our screens are designed to provide uniform low velocity throughout the entire screen surface, which all but eliminates screen blockage and plugging. By specifying a low through-slot velocity, leaves, algae, and aquatic life continue on their way without being drawn into your process stream or covering-up the outer surface of the intake screen.

Application for Water Intake Screens:

Filter tube or wedge wire pipes are usually used as the water filter equipment. They are used in the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection, the water of the sea into the industrial water and domestic water desalination treatment, water treatment, water softening treatment, oil chemical industry: the terminal filtration of oil products and chemical acid, alkali liquid filtration, alcohol and other organic solution of recycling.

Features for Water Intake Screens:

1.Filter pipe with high porosity is more efficient for the construction of water, oil and gas wells.
2.Filter pipe with low operating costs and high porosity is more conducive to groundwater infiltration, and plenty of deep water make the water level drop reduced, thereby reducing energy consumption.
3.Reducing pump wear, under the same conditions, the high porosity makes groundwater infiltration rate in the filter pipe penetration rate more slowly compared to other filtration apparatus, thus avoiding the sand enter the filter pipe in the larger pressure,reducing pump wear.
4.to extend the life of the well, relatively speaking, a high groundwater infiltration drainage pipe filter pores easier, low flow rate, extending the life of the well

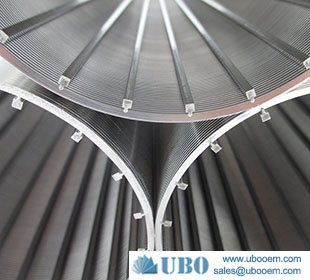

Water Intake Screens

Specification of the Water Intake Screens

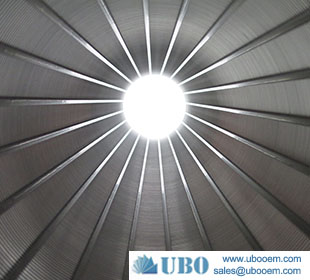

Water Intake Screens



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.


galvanized low carton (LCG), stainless steel (304,316 etc.)


up to 6 meters.


from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Water Intake Screens

Water Intake Screens
