water intake screens

Product Code: 1835
Category:Water Strainer & Nozzle
Material:stainless steel 302,304,304L,316,316L
Properties:Wedge Wire Screen
Application:water treatment ,oilfield,mining,water well,industry,filtration

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of water intake screens


water intake screensmanufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. Screen sections are usually twenty feet long. Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.

Application for water intake screens

water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Advantages for water intake screens

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

water intake screen

Announcement:

If you can envision it,We can supply it. TEL:0086-0311- 83289301 E-mail:sales@ubooem.com

  Ubo will do everything possible to provide exact and full product information based on metal mesh for your information.

  In order to give customer a clear image of the product,Ubo has taken some pictures, customer can dowmload for reference but using our picture for business is forbidden.

  Due to technique and other factors,product image might be slight different to the products itself,in case everything will follow the products.

  Ubo appreciate any suggestion on our product information or picture or anything else.

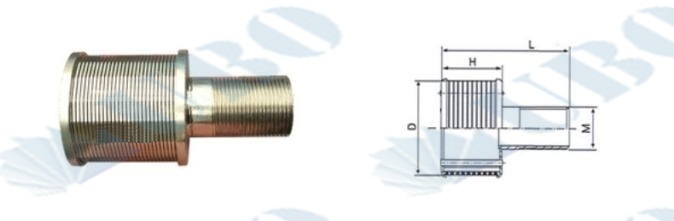

Specification of the water intake screens


water intake screen

No. Slot Dimension Flow area/mm2
(Slot:0.2mm)
D H L M L1
1 0.2-0.5 45 30 180 25 According to custom’s request 330
2 45 40 190 25 450
3 53 40 190 30 500
4 53 50 200 30 630
5 53 40 235 32 500
6 57 40 190 32 605
7 57 50 200 32 750

Production And Sales of water intake screens
