SS wire filter nozzle for water treatment

Product Code: 3331
Category:Water Strainer & Nozzle
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:water, oil, liquid filtration, industry filtration.etc

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of SS wire filter nozzle for water treatment


SS wire filter nozzle is formed by welding wire (cross section is wedge) through a special welding technology welded on the support wire, use Special equipment for resistance welding, high welding strength, uniform gap, strong corrosion resistance, effective filter area, high penetration efficiency, simple structure, minimum aperture 25μm, arbitrarily chosen by the customer.

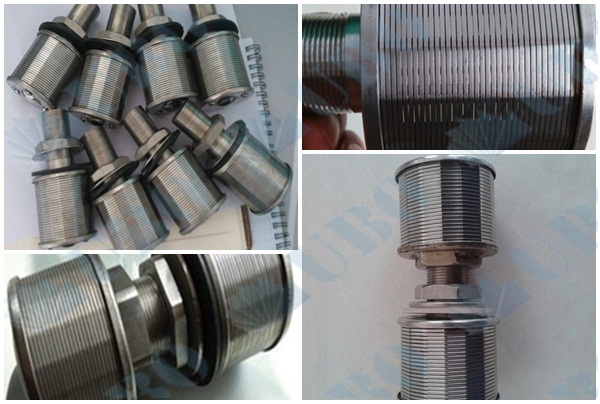

SS wire filter nozzle for water treatment



Features of SS wire filter nozzle for water treatment



-- High mechanical strength, can withstand greater pressure

-- Uniform aperture, form uniform filter cake, beneficial backwash regeneration

-- Wedge-shaped filter gap, improve backwash regeneration capacity

-- High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid.

-- Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect.



Applications of SS wire filter nozzle for water treatment



Johnson Screen Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

Specification of the SS wire filter nozzle for water treatment



D L L1 L2 Slot Size d Flow Area mm2
45 110-170 34 34 0.2-0.25 M24 390-493
45 110-170 44 44 0.2-0.25 M24 551-690
53 120-180 34 34 0.2-0.25 M27 453-597
53 120-180 44 44 0.2-0.25 M30 680-710
57 120-180 50 50 0.2-0.25 M32 800-1000
60 120-180 50 50 0.2-0.25 G1" 950-1188

Production And Sales of SS wire filter nozzle for water treatment


SS wire filter nozzle for water treatmentSS wire filter nozzle for water treatment
