Wire Cone Strainers

Product Code: 2091
Category:Cone Filter&Strainer
Material:Stainless steel 302,304,304L,316,316L
Properties:cone filter&strainer
Application:start-up,removing any coars,debris such as rags, welding rods, pipe scale, rust etc

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of Wire Cone Strainers


Conical Strainer is also called temporary conical strainer,belonging to pipeline coarse filter series.

It is used as pipeline strainers that are designed for new system start-up,removing any coarse,debris such as rags, welding rods, pipe scale, rust etc which accidentally present within the system to ensure the equipment produce safely.



Usage for Wire Cone Strainers:



It is used as pipeline strainers that are designed for new system start-up,removing any coars,debris such as rags, welding rods, pipe scale, rust etc which accidentally present within the system to ensure the equipment produce safely.



Features for Wire Cone Strainers:



Standard in sizes 3/4" through 48". Larger sizes available. Consult factory

Used primarily for new pipeline start-up or where solid loading is minimal
1/8" perforated screen with 22 gauge thickness is supplied as standard on sizes up to 8". 1/8" perforated screen with 16 gauge thickness is supplied as standard on sizes 10" to 24". Other meshes, perforations and materials are available upon request
Available in conical, basket and plate configurations
Available flat faced, raised face or RTJ with or without face serrations
Available in carbon steel, 304 stainless steel or 316 stainless steel as standard. Other materials are available upon request
Can be installed in horizontal or vertical pipelines with cone pointed upstream or downstream

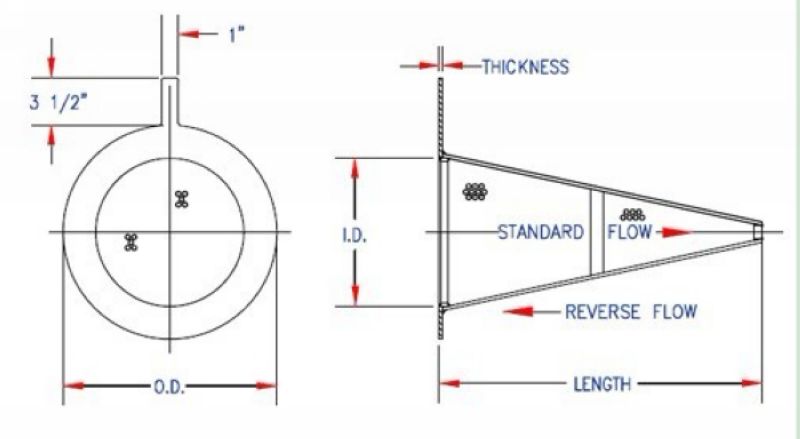

Specification of the Wire Cone Strainers


Wire Cone Strainers

NOM. SIZE

2

2 1/2

3

4

5

6

8

OD

150

3 7/8

4 5/8

5 1/8

6 5/8

7 1/2

8 1/2

10 3/4

300

3 7/8

4 5/8

5 1/8

6 5/8

7 1/2

8 1/2

10 3/4

600

4 1/8

4 7/8

5 5/8

6 7/8

9 1/4

10 1/4

12 3/8

ID

1 3/4

2 1/4

2 3/4

3 1/2

4 5/8

5 1/2

7 1/8

H

4 1/2

5 1/2

6 1/2

8 1/2

10 1/2

13

17

L

3 1/2

4

4 1/2

6

7 1/2

9

12

NOSE

1

1

1

2

2

2

2


NOM. SIZE

10

12

14

16

18

20

24

OD

150

13 1/8

15 7/8

17 1/2

20

21 3/8

23 5/8

28

300

13 1/8

15 7/8

17 1/2

20

21 3/8

23 5/8

25

600

15 1/8

17 3/8

19 1/8

22

13 7/8

26 5/8

30 7/8

ID

9

10 7/8

12 5/8

14 1/2

16 3/8

18 3/8

22 3/8

H

21

25

26

29 1/2

33

37

44

L

14

16 1/2

17

19

21

24

28

NOSE

3

3

4

4

6

6

10

Production And Sales of Wire Cone Strainers


Package: in wood case

Delivery Time: 5-25 days
