Sintered multilayer fabricated filter

Product Code: 1700
Category:Metal Sintered Filter Elements
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Sintered filter
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Sintered multilayer fabricated filter

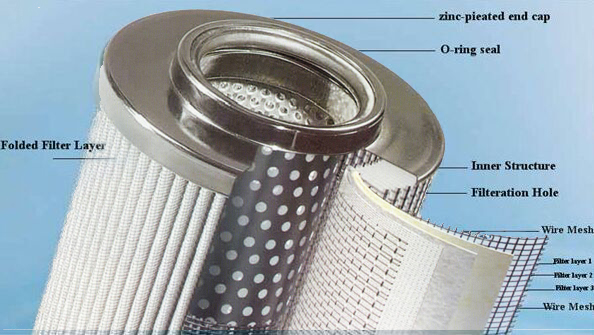

    Stainless steel cylinder filter element is available by variety of styles to satisfy customer requirements. We design it according to micron rating, differential pressure, product characteristics, on stream life requirements, disposability, and cleaning method. The filter media included metal fiber felt, muti-layer metal mesh, metal wire mesh, and others. It can be provided as a flat wrap for making cylindrical filters elements or pleated for making pleated filter elements.

Applications for Sintered multilayer fabricated filter:

High temperature fluids
High viscosity fluids
Toxic or hazardous fluids
Hydraulic oil
Natural or process gases
Process steam
High differential pressure
Corrosive liquids and gases
Cryogenic fluids
Electronic grade liquids or gases
Precious particulate recovery
Sterilization steam

Features for Sintered multilayer fabricated filter:

3 times greater dirt holding capacity than conventional metal cartridges
Double the porosity and permeability than sinter metal power cartridges
4 times higher flow rate than conventional metal cartridges
No media migration or fiber release
Excellent mechanical strength
Reclothing design available

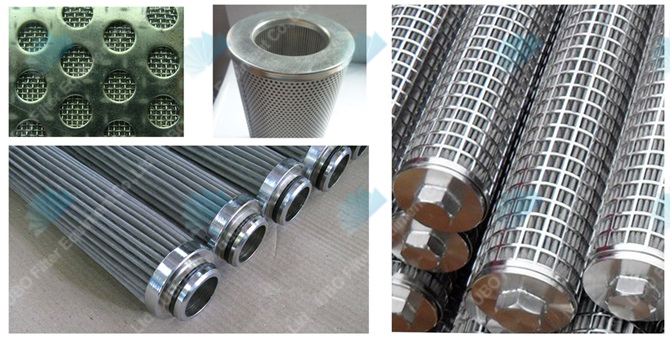

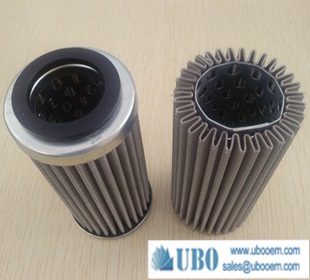

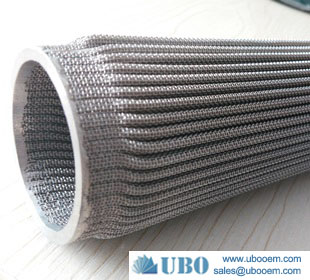

Sintered multilayer fabricated filter

Specification of the Sintered multilayer fabricated filter


Sintered multilayer fabricated filter

Specifiction
μm(c)
Micron
μm(c)
Pressure of Bubble Point
(pa)
Air Permeability
L/(min.dm2)
Pore Opening
(%)
Pollutant Carry Capacity
(mg/cm2)
Thickness
(mm)
Breaking Strength
(MPa)
Basic Value Dev. Basic Value Dev. Basic Value Dev. Basic Value Dev. Basic Value Dev. Basic Value Dev.
SF5 5 6800 +10% 47 +10% 75 +10% 5.0 +10% 0.30 +10% 32 +10%
SF7 7 5200 63 76 6.5 0.30 36
SF10 10 3700 105 75 7.8 0.37 32
SF15 15 2450 205 79 8.6 0.40 23
SF20 20 1900 280 80 15.5 0.48 23
SF25 25 1550 355 80 19.0 0.62 20
SF30 30 1200 520 80 26.0 0.63 23
SF40 40 950 670 78 29.0 0.68 26
SF60 60 630 1300 85 36.0 0.62 28

1.Material:SUS316L

2.Micron:5-60um

3.Could add protected mesh on both side

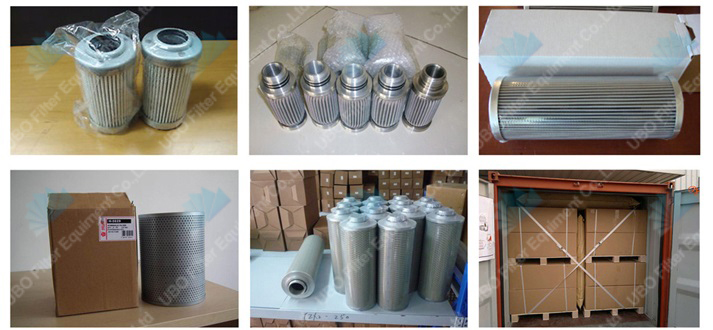

Production And Sales of Sintered multilayer fabricated filter


Sintered multilayer fabricated filter

Sintered multilayer fabricated filter
