| Category: | Disc Filters |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | Filter disc |
| Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |

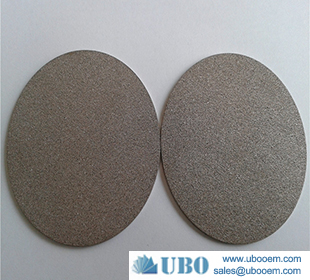

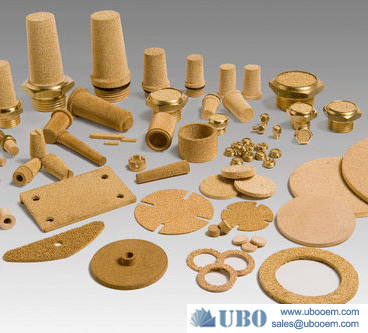

Bronze powder sintered filter disc are made of bronze,stainless steel and titannium ball or irregular powders.This filter elements via high temperatures sintering process to be any shape by the moulds.
Bronze powder sintered filter disc are widely used in chemical,pertroleum,metallurgy,air carft,gas,electronic,pharmacy,pneumatic,air regulator components,pressure filter elements,air filters and etc fields
Mainly used in petroleum, chemical, automotive, aircraft, marine industrial filtration gases, liquids, fuel oil, also used extensively for pneumatic, hydraulic circuit filter elements.
1 high precision filter: pore stability, will not change the pore pressure changes with the phenomenon. Can effectively remove suspended solids and particulates, excellent filtration, purification effect.
2 permeability, pressure loss is small. Filter composed entirely of spherical powder, high porosity, pore size uniformity and smooth, the initial resistance is small, easy cleaning, regeneration ability, long service life.
3 high mechanical strength, good rigidity, good plasticity, anti-oxidation, corrosion protection without additional framework support, installation and use, easy maintenance, assembly, and can be welding, bonding and mechanical processing.
4 uniform porosity, especially for fluid distribution, homogenization treatment uniformity requirements of the occasion.
5 forming a copper powder products, without cutting, effective utilization of raw materials is high, maximum material savings.
6 Filtration: 5 ~ 50μm.
|
Filtering
Level
|
Filtration
Precision
um
|
Maximum
Hole
Diameter um
|
Permeability
Coefficient
10~12㎡
|
Permeability
M3/h.㎡.kpa
|
Thickness
mm
|
Compression
Strength
Mpa/cm2
|
Bubbling
Pressure
Kpa
|
|
S9
|
0.2
|
2.5
|
|
1
|
0.6~10
|
3.0
|
|
|
S8
|
0.5
|
4
|
|
3
|
0.6~10
|
3.0
|
|
|
S7
|
1.5
|
6
|
|
5
|
0.6~10
|
3.0
|
|
|
S6
|
2.5
|
10
|
0.09
|
10
|
0.6~10
|
3.0
|
9.16
|
|
S5
|
5
|
15
|
0.23
|
40
|
0.6~10
|
3.0
|
6.1
|
|
8
|
20
|
0.91
|
80
|
0.6~10
|
3.0
|
4.6
|
|
|
S4
|
10
|
30
|
1.81
|
160
|
0.6~10
|
3.0
|
2.6
|
|
S3
|
28
|
60
|
3.82
|
350
|
0.6~10
|
3.0
|
1.8
|
|
35
|
80
|
7.29
|
500
|
0.6~10
|
3.0
|
1.4
|
|
|
S2
|
40
|
100
|
9.43
|
700
|
0.6~10
|
3.0
|
1.1
|
|
S1
|
65
|
160
|
15.1
|
1000
|
0.6~10
|
3.0
|
0.66
|
