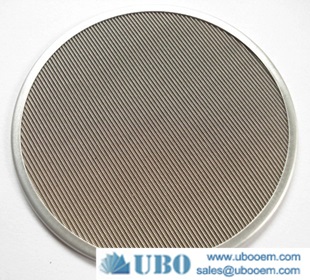

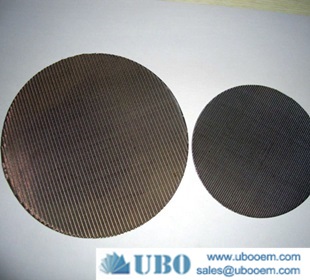

sintered mesh filter disc

Product Code: 1749
Category:Disc Filters
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:filter disc
Application:waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of sintered mesh filter disc


   sintered mesh filter disc is a kind of the most widely used standards for the structure of sintered network. This sintered network is the five-story stainless steel wire mesh stacked together in sequence, after a new type of vacuum sintered filter material.

Application for sintered mesh filter disc:

Filter disc is widely used in Distillation, absorption, evaporation, filtration and other processing,to serve rubber, plastics industry, sieving of grain and oil, oil, oil refining, chemical industry, light industry, medicine, metallurgy, machinery, ships, automobiles and other industry. It's used to eliminate liquid foam and droplets entrained in the steam or gas as well as an air filter on the car.

Construction for sintered mesh filter disc:

1. protective layer
2. filter control layer
3. dispersion layer
4. supporting skeleton layer
5. skeleton layer of five parts.

Features for sintered mesh filter disc:

1. high mechanical strength and compressive strength. Machining, welding and assembly properties of a good, easy to use.
2. Filter layer on the second floor so that it has been well protected and diversion, filtering precision can reach uniform filter performance, ensure that it has high stability.
3. Selection of 316L material, good corrosion resistance, heat resistance, and can be used to -200 °C ~ 480 °C temperature and acid-base environment, filtering.

sintered mesh filter disc

Specification of the sintered mesh filter disc


Mesh
Wire dia (mm)
Material (AISI)
12*64
0.58/0.40
304 ,316
24*110
0.36/0.25
304 ,316
14*88
0.50/0.33
304 ,316
30*150
0.18/0.14
304 ,316
40*200
0.14/0.11
304 ,316
50*250
0.10/0.071
304 ,316
80*700
0.06/0.05
304 ,316
165*800
0.071/0.04
304 ,316
200*1800
0.05/0.03
304 ,316
325*2300
0.03/0.025
316L
400*2800
0.03/0.02
316L
