Perforated Metal Sintered Wire Mesh Filter

Product Code: 1704
Category:Sintered Metal Mesh Filter
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Sintered filter
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of Perforated Metal Sintered Wire Mesh Filter

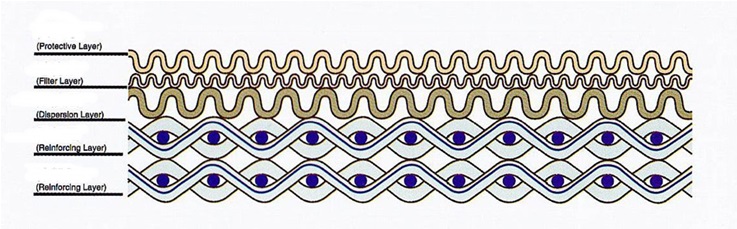

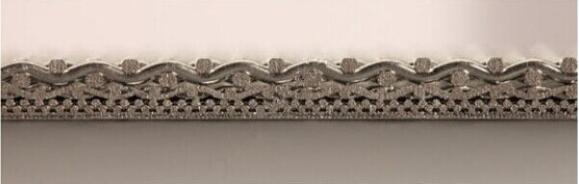

Perforated Metal Sintered Wire Mesh Filter are made of 5-layer sintered wire mesh laminates.This kind of filter cartridge has good capacicties such as the corrossion resistance,good air permeability,easy to back wash,high filter rating and etc.

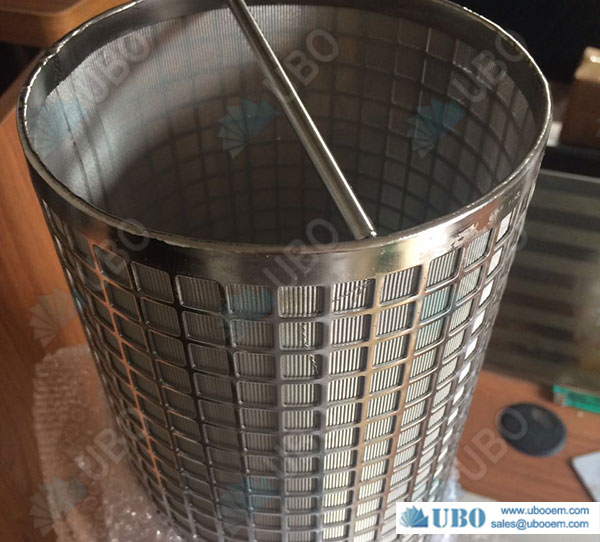

Perforated Metal Sintered Wire Mesh filter

Perforated Metal Sintered Wire Mesh filter



Applications for Perforated Metal Sintered Wire Mesh Filter:



1) Polyester filtration

2) Water treatment purification

3) Oil filtration

4) Pharmacy factory

5) Chemical filtration

6) Air Steam filtration

7) Beverage

8) Powder Distribution



Adaptors for Perforated Metal Sintered Wire Mesh Filter:



1) Standard Adaptors (222,220,226)

2) Fast Interface Connector

3) Threaded Connector

4) Flange

5) Tire Rod

6) Other Special Adaptors



Advantage for Perforated Metal Sintered Wire Mesh Filter:



1) Long element service life through highest dirt holding capacities

2) Higher operational dependability through outstanding cleanliness classes

3) Reduced maintenance costs through long replacement intervals

4) Low disposal coats through weight reduction

5) Greater safety through high differential pressure stability



Details for Perforated Metal Sintered Wire Mesh Filter:



1) Filter Materials:SUS 316L,304

2) Filtering Rating:1-200 micron

3) Filter Media:Sintered Wire Mesh or Sintered Metal Fiber Felt

4) Shapes:Cartridge Filter, Disc Filters,Pleated Filter Elements, Filter Panel and etc.

5) Working Temperature:-200 —600°C

Specification of the Perforated Metal Sintered Wire Mesh Filter


Perforated Metal Sintered Wire Mesh filter

Filtering
Level
Filtration
Precision
um
Maximum
Hole
Diameter um
Permeability
Coefficient
10~12㎡
Permeability
M3/h.㎡.kpa
Thickness
mm
Compression
Strength
Mpa/cm2
Bubbling
Pressure
Kpa
S9 0.2 2.5
1 0.6~10 3.0
S8 0.5 4
3 0.6~10 3.0
S7 1.5 6
5 0.6~10 3.0
S6 2.5 10 0.09 10 0.6~10 3.0 9.16
S5 5 15 0.23 40 0.6~10 3.0 6.1
8 20 0.91 80 0.6~10 3.0 4.6
S4 10 30 1.81 160 0.6~10 3.0 2.6
S3 28 60 3.82 350 0.6~10 3.0 1.8
35 80 7.29 500 0.6~10 3.0 1.4
S2 40 100 9.43 700 0.6~10 3.0 1.1
S1 65 160 15.1 1000 0.6~10 3.0 0.66

Production And Sales of Perforated Metal Sintered Wire Mesh Filter


Perforated Metal Sintered Wire Mesh filter
