etching mesh cylinder filter

Product Code: 1608
Category:Cylinder Filter
Material:Stainless Steel wire mesh, etching mesh
Properties:Stainless Steel Filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of etching mesh cylinder filter


Etched filter, etching metal sheet, also named etching metal, etching metal mesh, etc.

Process: chemical etching.

Material: any sheet material or belt materials such as stainless steel, brass, steel, iron, nickel, alloy etc

Producing process of etching mesh cylinder filter

Feeding--etching1 ---etching 2-- recycle water washing→urban water washing→bolt up→check→soak→spraying stripping -- recycle water washing→urban water washing→bolt up→hot air drying→ discharge

Character of etching mesh cylinder filter

precision double etching, smooth surface on both edges, no embossment, no convex-concave, no burnisher burr , no warping, no ,   any complicated pattern or geometric figure is available. Compared to perforated metal, it does not need polishing, and moreover, it’s very easy to change design and takes shorter producing time. It can produce what perforated metal machine can not produce.

Uses of etching mesh cylinder filter

metal mobile keyboard, precise filter, shaped wire mesh, nameplate, juice machine filter, razor sheet, precise elecronics parts, ani-insect net, meal crafts, metal grid, metal cover, metal plate for model, decorative metal plate, metal name plate, metal cards, etched ornament, etc.

Application industry of etching mesh cylinder filter

in electronics, machinery, optical, oil, chemical, vehicle, artworks etc.

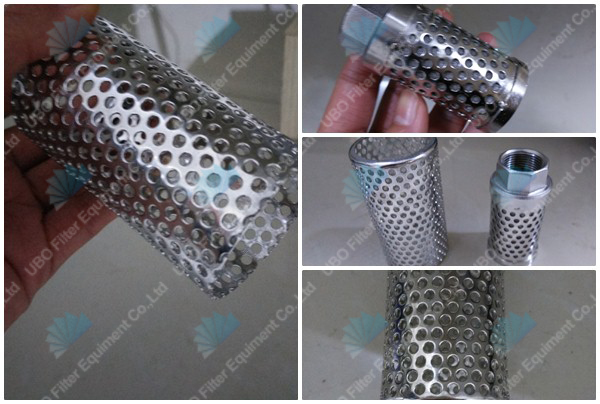

etching mesh cylinder filter

Specification of the etching mesh cylinder filter


Item

Description

Material

any sheet material or belt materials such as stainless steel, brass, steel, iron, nickel, alloy etc

Material thickness

0.02mm-3.0mm especially less than 0.5mm

Min. wire aperture

0.02mm

Max. Produced area

500*600mm

Production And Sales of etching mesh cylinder filter
