wedge wire stainless steel screen nozzles

Product Code: 2194
Category:Water Strainer & Nozzle
Material:Stainless steel 316
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

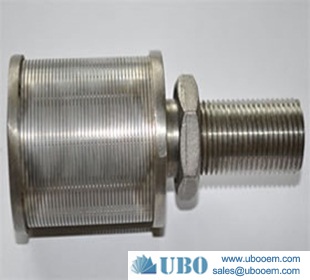

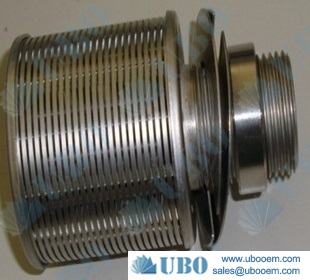

Description of wedge wire stainless steel screen nozzles


Our wedge wire stainless steel screen nozzles are used effectively in a variety of water tratemest system.They are economical,easily installed and have several distinct design advantages: .Type 316L stainlesss steel construction . .Continuous slot design provides increased open aera for better collection .Standard slot opening is 0.007" (0.18 mm), suitable for 40 to 50 mesh size media. Other slot sizes are also available. .Wedge wire screen is highly resistant to plugging. .Choice of either ¾" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available. .Less expensive than other screen of equal efficiency.   .Small systems may be built modularly from off-the-shelf components requiring minimal customization.

Advantages of wedge wire stainless steel screen nozzles

High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Long work time.
Easy to clean and back wash;
Uniform gap.

Use of wedge wire stainless steel screen nozzles

The wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

wedge wire stainless steel screen nozzles

Ubo Filter Co.,Ltd is specialized in producing and distributing Mine  sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,V shaped wire  welded screens,Spiral screen tube,Wire-wrap screen pipe,Mine screen mesh,Screen cylinders,Vibrating sieve  screen plate.
Welcome to contact us for more information and cooperation.0086-0311-83289301

Specification of the wedge wire stainless steel screen nozzles


filter nozzle



No. Type Ton Slot
Opening
Size 0.2-0.25mm slot opening Area of through-flow mm2(reference)
D L1 L M
1 SH45-1-C 0.5 0.2-0.5 45 45 95 24 500
2 SH53-2-B 1 0.2-0.5 53 45 100 24 570
3 SH53-2-C 1.5 0.2-0.5 53 50 110 32 700
4 SH57-3-B 2 0.2-0.5 57 45 110 32 600
5 SH70-4-B 3 0.2-0.5 70 55 120 32 1000
