Stainless Steel V Wire Screen Nozzle Filter

Product Code: 3320
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Stainless Steel V Wire Screen Nozzle Filter


Stainless Steel V Wire Screen Nozzle Filter is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot.

To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.


Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.

Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

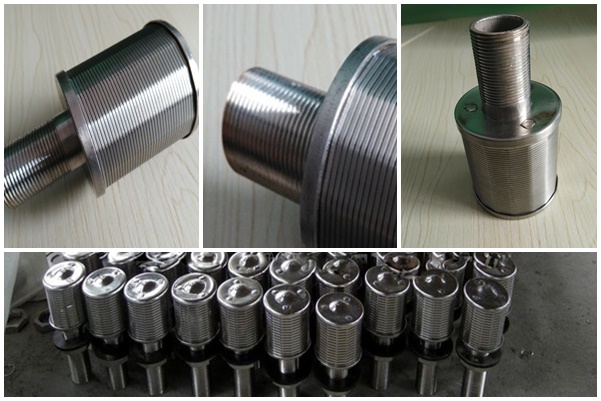

Stainless steel v wire screen nozzle filter

Feature of Stainless Steel V Wire Screen Nozzle Filter

1) No deformation and damage by pressure of filtration layer.

2) Improve filtering efficieny by maximizing filtrating area.

3) Accurate slots

4) Long life.

Application of Stainless Steel V Wire Screen Nozzle Filter

Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin, ....).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

Specification of the Stainless Steel V Wire Screen Nozzle Filter


Stainless steel v wire screen nozzle filter

No.

Slot

Dimension

Flow area/mm2 (Slot: 0.2mm)

D

H

L

M

L1

1

0.2-0.5

45

30

180

25

Customized is available

330

2

45

40

190

25

450

3

53

40

190

30

500

4

53

50

200

30

630

5

53

40

235

32

500

6

57

40

190

32

605

7

57

50

200

32

750

Production And Sales of Stainless Steel V Wire Screen Nozzle Filter


Stainless steel v wire screen nozzle filter
