| Category: | Wedge Wire Screen Cylinders |
| Material: | stainless steel 304 316 316L |
| Properties: | wedge wire screen |
| Application: | water desalination treatment; running water treatment; softening treatment; |

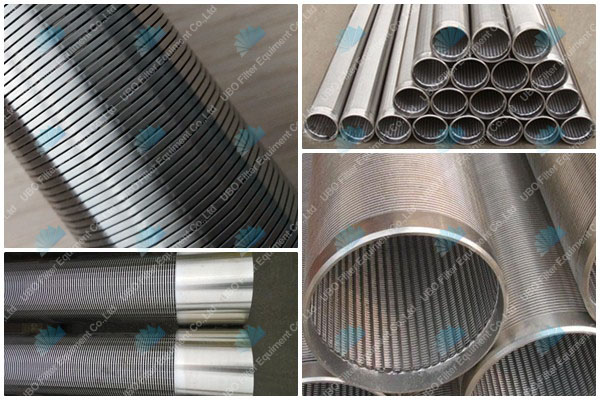

Wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.
| 1.)wedge wire screen style isn't easy to be locked | |||||||||
| 2.)due to the different pressure between inside from outside,it could be very easily to clean the plugging material. | |||||||||
| 3.)we are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability | |||||||||
| 4.) we have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles . | |||||||||
| 5.) choose our products styles, we supply drawing, after confirming the sample , producing in large. | |||||||||
Usages of wedge wire screen for wastewater |
|||||||||
| 1.) widely used in vairous kinds of medium filtering | |||||||||
| 2.) as the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment; | |||||||||
| 3.) the petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol; | |||||||||
|
4.) the organic solution recycling filter
Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral. |
|||||||||
| 1.FACTORY MAINLY MATERIAL | |||||||||
| stainless steel 304 / 316 / 316L | |||||||||
| 2.PROFILE WIRE (MM) | |||||||||
| width | 1.5 | 1.5 | 2.3 | 2.3 | 1.8 | 3 | 3.7 | 3.3 | |
| height | 2.2 | 2.5 | 2.7 | 3.6 | 4.3 | 4.7 | 5.6 | 5.3 | |
| factory mainly size:1.5*2; 2*3 | |||||||||
| producing as per customer's requirements | |||||||||
| 3.SUPPORT ROD (MM) | |||||||||
| width | 2.3 | 2.3 | 3 | 3.7 | 3.3 | ||||
| height | 2.7 | 3.6 | 4.7 | 5.6 | 6.3 | ||||
| factory mainly size: 2*3; 3*5; 4*6 | |||||||||
| producing as per customer's requirements | |||||||||
| support rod quantity as per customer's requirements | |||||||||
| 4.SLOT GAUGE :Minimum : 0.02mm | |||||||||
| 5.OUTSIDE DIAMETER ; Minimum:30mm | |||||||||
| 6.LENGTH OF WEDGE WIRE SCREEN | |||||||||
| producing as per customer's requirements | |||||||||
