wedge wire screen filter

Product Code: 2208
Category:Header-Lateral
Material:Stainless steel 304
Properties:wedge wire screen filter
Application:ore choosing,petroleum,chemical,water,plastics,food

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of wedge wire screen filter


Welded wedge wire screen filter provide a unique combination of the most important features required for maximum screening efficiency.The product is custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application. The high open area of the Wedge Wire screen provides excellent capacity. Wedge Wire screen offers continuous slot openings that widen inwardly so that particles tend to pass through the screen

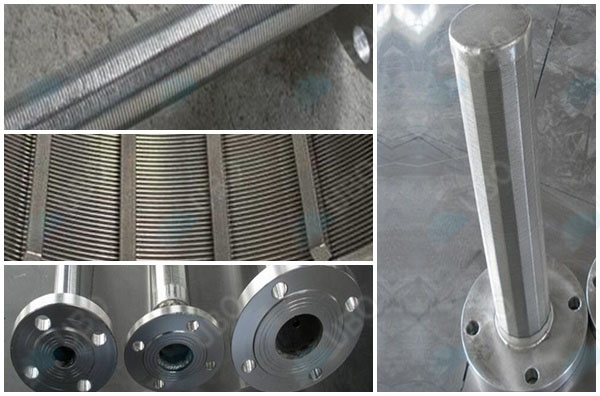

wedge wire screen filter

Applications of wedge wire screen filter

Liquid / Solids Separation
Sizing, Straining and Filtering
Collection
Retention
Solids removal from process wastewater
Lake and riverwater intake screens
Fiber removal
Screen cylinders for rotary screens
Recovering solids
Pulp thickening
Heavy media recovery
Product dewatering
Sieve Bend Screen surfaces
In-line strainers to minimize the lose of media
Resin Traps used as an effluent strainer
Sizing of solids
Pressure screens
Filtering particles from treated fluid
Strainers for pump or compressor protection
Support grids for uniform fluid collection in media filter
Hub lateral screen systems
Header lateral screen systems
Collection of treated liquid in treatment vessels
Filter nozzles for tube sheets
Upflow Clarifiers
Gravity filter underdrain systems
Retaining media and collecting the treated liquid
Carbon retention screens in carbon-in-pulp tanks
Flooring for germination, malt kiln, grain drying rooms
Catalyst retention in catalytic reactors
Fish protection / diversion screens

Specification of the wedge wire screen filter


Wire Width

Wire Height

Relief Angle

Typical Support Rods

30V

.030"

.06"

10

.125" round

45V

.045"

.09"

10

.125" round

63V

.063"

.11"

13

.156" round

69U

.069"

.17"

8

.075" x 1" bar

93V

.093"

.15"

13

.25" round or .075" bar

93U

.093"

.17"

5

.25" or .38" round

125V

.125"

.20"

13

.38" round

Production And Sales of wedge wire screen filter


wedge wire screen filterwedge wire screen filter
