SS 316 Wedge Wire Screen Filter Nozzle Strainer

Product Code: 3632
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:filter nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of SS 316 Wedge Wire Screen Filter Nozzle Strainer


SS 316 Wedge Wire filter nozzle strainers are used in liquid/solid or gas/solid separation. The wedge wire screen design of each filter nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow thus almost eliminating the channeling, wall effects or dead zones.

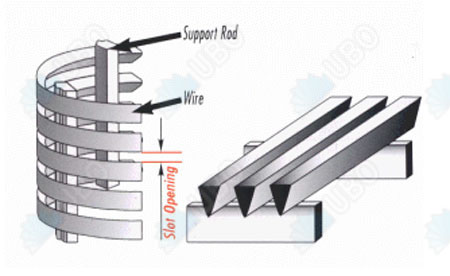

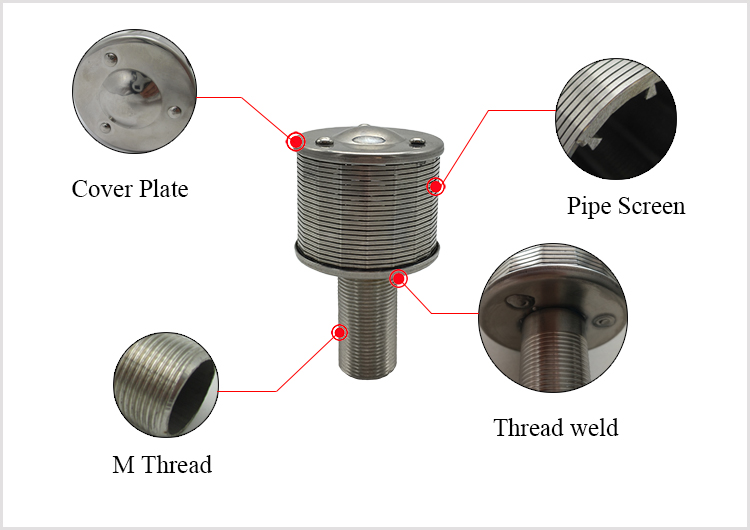

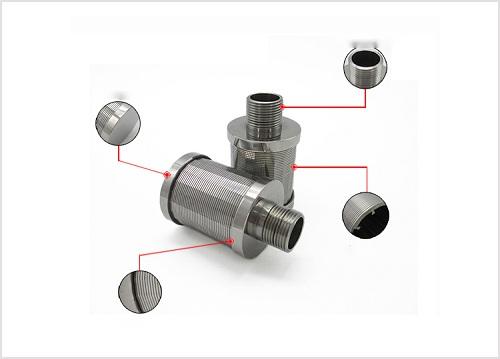

Wedge Wire filter nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate. Filter nozzle strainer is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

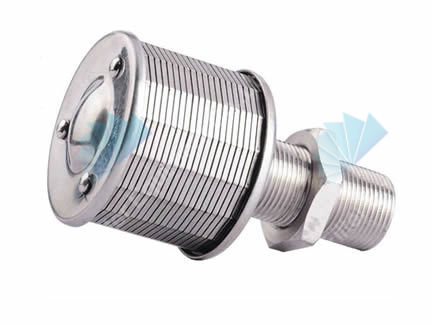

SS 316 Wedge wire Wedge Wire filter nozzle strainer

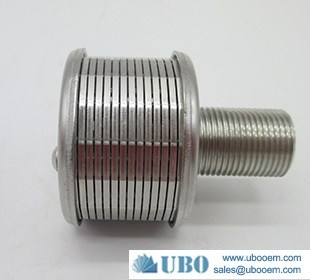

SS 316 Wedge wire Wedge Wire filter nozzle strainer

Advantages of SS 316  Wedge Wire Filter Nozzle Strainer



Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
It is possible to clean the wedge wire screen with a reversed flow (back flushing).



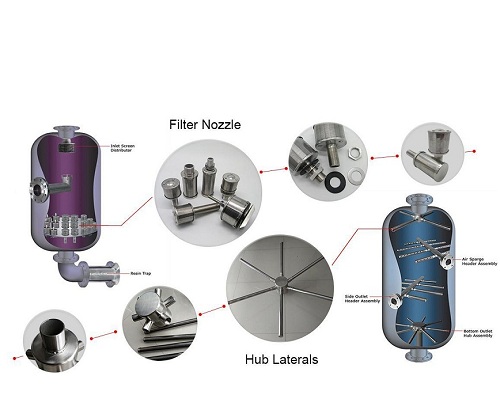

Application of SS 316 Wedge Wire Filter Nozzle Strainer



Stainless Steel High Pressure Filter Nozzles Wedge Wire Screen Strainer can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

SS 316 Wedge wire Wedge Wire filter nozzle strainer

SS 316 Wedge wire Wedge Wire filter nozzle strainer

Specification of the SS 316 Wedge Wire Screen Filter Nozzle Strainer


SS 316 Wedge wire Wedge Wire filter nozzle strainer

Type Slot
(mm)
Dimension Flow Rating
(M3/H)

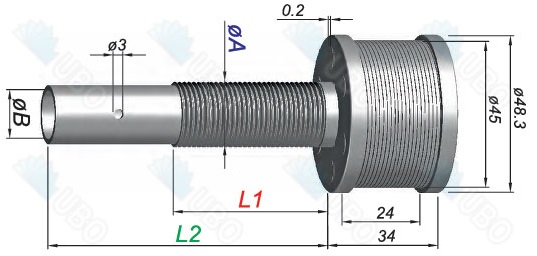

D(mm) H(MM) L(MM) Thread Fittings
UBO-0.5 0.25 45 45 90/request M,NPT, G, PT(BSPT),Z,BSP, request SS Gasket,
Rubber gasket,
Nut, request
0.5
UBO-1.0 0.25 53 45 90/request 1.0
UBO-1.5 0.25 57 45 90/request 1.5
UBO-2.0 0.25 57 55 100/request 2.0
UBO-2.5 0.25 70 55 100/request 2.5
UBO-3.0 0.25 70 70 120/request 3.0
Note * All the above size are the normal size. Customized size is possible.
* UBO could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
3. Thread according to requirement

Production And Sales of SS 316 Wedge Wire Screen Filter Nozzle Strainer


packing of SS 316 Wedge wire Wedge Wire filter nozzle strainer
