wedge wire for flow Distribution

Product Code: 2624
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of wedge wire for flow Distribution


wedge wire / stainless steel material welded wedge wire screen / flat welded screens in a large variety of surface and support wire combinations, that can be applied for simple screen plates to heavily reinforced reactor internals.

Characteristics of wedge wire for flow Distribution

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

2. Material

Stainless steel wire, steel wire, iron wire, galvanized wire etc .

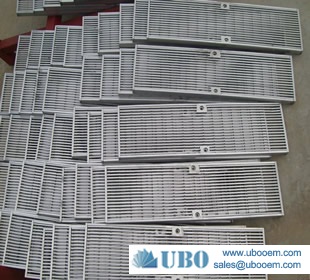

wedge wire for flow Distribution

Applications of wedge wire for flow Distribution

The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, Decoration and other industries

Features of wedge wire for flow Distribution

High mechanical strength, can withstand greater pressure
Uniform aperture, form uniform filter cake, beneficial backwash regeneration
Wedge-shaped filter gap, improve backwash regeneration capacity
High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid.
Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect.

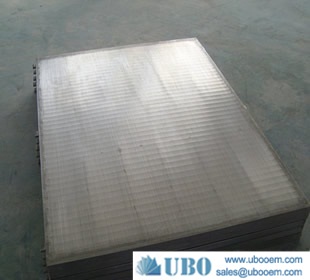

wedge wire for flow Distribution

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the wedge wire for flow Distribution


Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.

Production And Sales of wedge wire for flow Distribution


wedge wire for flow Distribution
