wedge wire for flow Distribution

Product Code: 3661
Category:Header-Lateral
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:header lateral
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Author: Eva
Email:sales@ubooem.com

Description of wedge wire for flow Distribution


Wedge wire for flow distribution is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

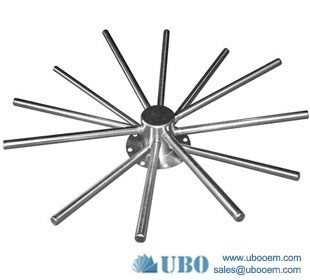

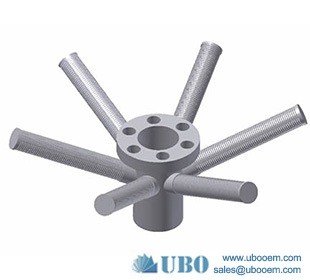

Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

Application for wedge wire for flow Distribution:

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Advantage for wedge wire for flow Distribution:

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Traditional laterals for wedge wire for flow Distribution:

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

wedge wire for flow Distribution

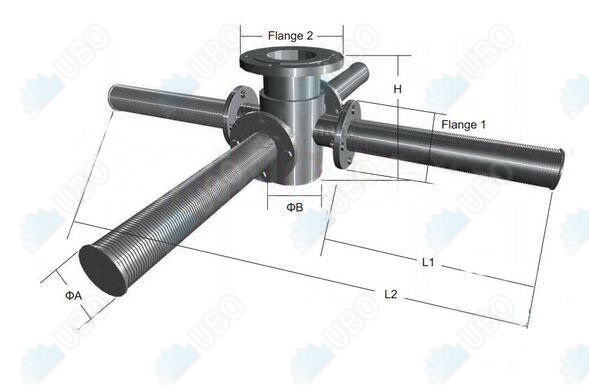

Specification of the wedge wire for flow Distribution


multiple tiers of <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> laterals



nominal diameter

Branch diameter

Branch Qty

The specification of the nominal flange

1500

45-76

4-12

DN100

2000

45-76

4-12

DN125

2500

57-89

4-12

DN150

3000

57-108

4-12

DN200

3200

57-108

4-12

DN200

The above specifacation are our nomal products, usually, we design according to client's request.

Production And Sales of wedge wire for flow Distribution


<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> header lateral for Drainage Systems
