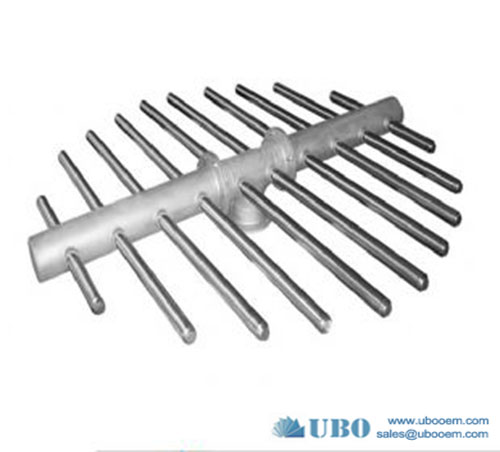

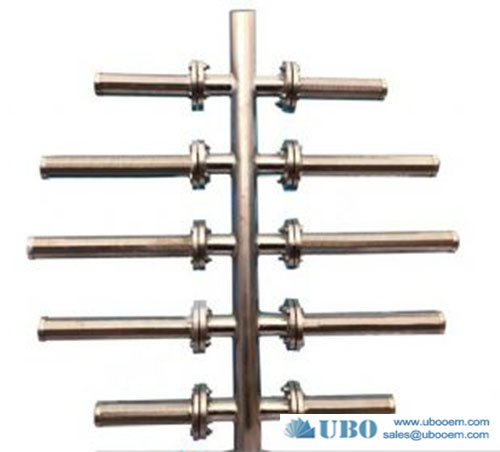

stainless steel hub lateral systems screen for petrochemical industry

Product Code: 2775
Category:Header-Lateral
Material:stainless steel
Properties:wedge wire screen
Application:for petrochemical industry

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

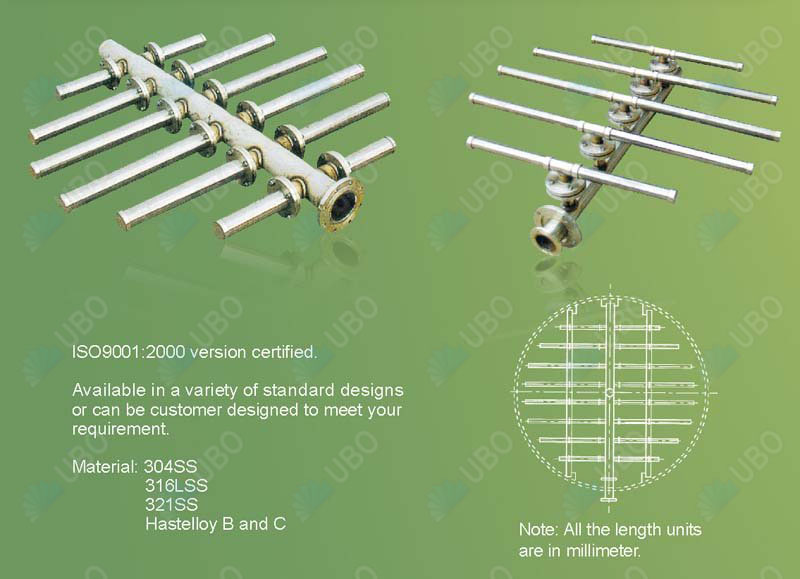

Description of stainless steel hub lateral systems screen for petrochemical industry


  Hub laterals promote even distribution while also avoiding flow/pressure concentrations. The non-plugging hub style design is ideal for accommodating disc head vessels. Made to your specification of size, open area and material, you can expect easy maintenance and exceptional long-term durability. We can builds hub laterals to your specifications for material, wire and rod size as well as open area.

stainless steel hub lateral systems screen for petrochemical industry

Features for stainless steel hub lateral systems screen for petrochemical industry:

1.Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of well.

Characteristics for stainless steel hub lateral systems screen for petrochemical industry:

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application for stainless steel hub lateral systems screen for petrochemical industry:

The header assembly are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.

Specification of the stainless steel hub lateral systems screen for petrochemical industry


stainless steel hub lateral systems screen for petrochemical industry

Length L1 Slot mm AMD 4 AMD 6 AME 6 AMD 8
    Ф=MM
82 0.05

0.1

0.2

0.3

0.5

1
258 259 258
113 316 321 316
144 374 383 374
175 432 445 432
206 491 507 491 520
237 549 569 549 580
268 607 631 607 640
299 665 693 665 699
330 724 755 724 759
361 782 817 782 819
392 840 879 840 879
423 898 941 898 939
454 957 1003 957 999
485 1015 1065 1015 1059
516 1073 1127 1073 1119
547 1131 1189 1131 1179
578 1189 1251 1189 1239
609 1247 1313 1247 1299
640       1359
671       1419
702       1479
733       1539
