Customized Wedge Wire Screen Panels

Product Code: 1863
Category:Sieve Plate Screen
Material:stainless steel
Properties:wedge wire screen
Application:Filtration,Architectural

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Customized Wedge Wire Screen Panels


The Wedge Wire Screens Custom Lighting are used in the filtration industry,dewatering,desliming,jigging machines,sieve bend,wedge wire grating and vibrating screens.

UBO produces polyurethane frame wedge wire panel and sieve bend,the abrasive resistance is much better than other steel screens,wedge wire sieve bend is economical and long life use.

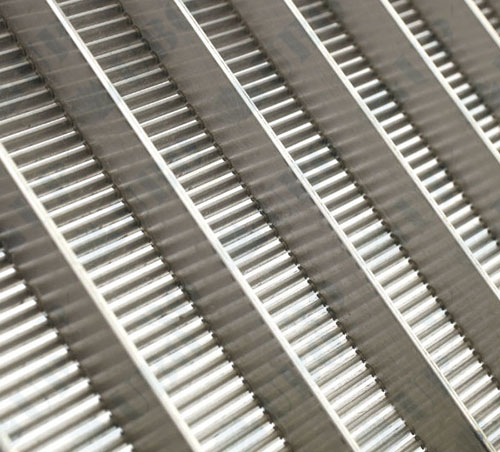

Wedge Wire Screens Custom Lighting

UBO can custom make any vee wire slot wedge wire plate to fit any customer's specified width and length requirements. The quality of workmanship that comes with constructing the panels, superior materials used and high precision slots ensure that our panels will meet even the most demanding applications in the industry.

Features of Custom Wedge Wire Screens Panels

The features of the Wedge Wire screen make it an attractive solution for
separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing.

Applications of Custom Wedge Wire Screens Panels

Fish Diversion Screen Panels

Flooring for malt kiln, germination and grain drying

Food Processing

Hatchery Screens

Mineral Processing

Surface water intake screens

Vibrating or Static intake screens

Specification of the Customized Wedge Wire Screen Panels


PROFILE WIRE
B (mm) 1.50 1.50 2.30 2.30 1.80 3.00 3.70 3.30
H (mm) 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
α (°) 6° ,10° , 12°
GAP SLOT WIDTH(mm) 0.3mm-10mm


LONG WEDGE
SUPPORT WIRE

Convex shape wire
B(mm) 1MM-3MM B (mm) 3mm-5mm
H(mm) 4MM-6MM H(mm) 3mm-5mm


SUPPORT PROFILES
WIDTH(mm) 2.30 2.30 3.00 3.70 3.30
HEIGHT(mm) 2.70 3.60 4.70 5.60 6.30

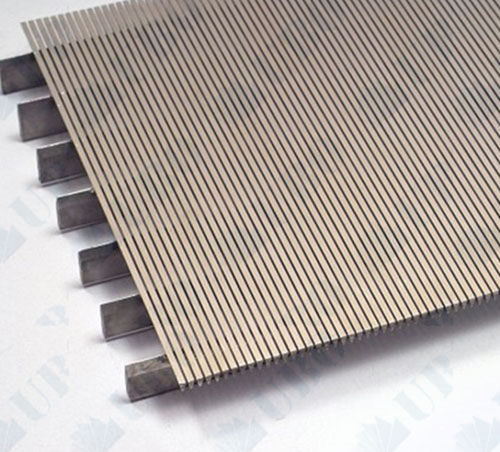

Round Support Rod Construction Rectangular Support Rod Construction
63V on ¼" diameter at 1 ¼" centers 63V on .074" x ½" at 1" centers
69U on 5/16" diameter at 2" centers 69U on .074" x ¾" at 1 ½" centers
93V on 5/16" diameter at 2" centers 93V on .074" x 1" at 2" centers
125V on 3/8" diameter at 3" centers 125V on .105" x1" at 2" centers

Production And Sales of Customized Wedge Wire Screen Panels


Wedge Wire Screens Custom LightingWedge Wire Screens Custom Lighting
