v shaped water well screen for industrial water

Product Code: 2766
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:for industrial water

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

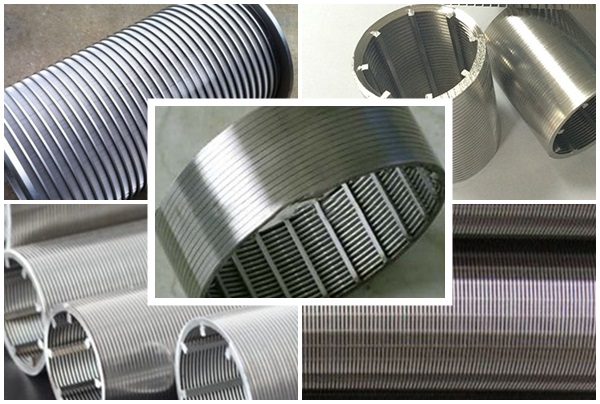

Description of v shaped water well screen for industrial water


1. Technical specification and professional design :

Accurate slot dimension,

Profile wire is triangular wire ( V-shaped wire ),

Support Rod Wire could be round wire, triangular wire or trapezoid wire.

2. it could connect different type joints . such as :

one side is internal thread , the other side is external thread
3.UBO Not Only Produce Nozzles Perfect, But Also Make The World Beautiful !

Widely use as :

3.1 Oil & Gas

Wire Wrapped and Direct Wrapped Screens

Premium Screens

Pre-pack Screens

Thru-Tubing Screens

3.2  Water Well

Stainless Steel  Rod Based Screens

Pipe Based Screens

Accessories

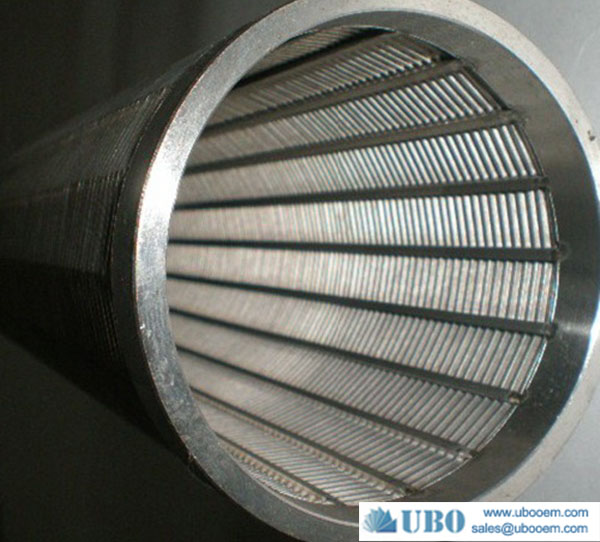

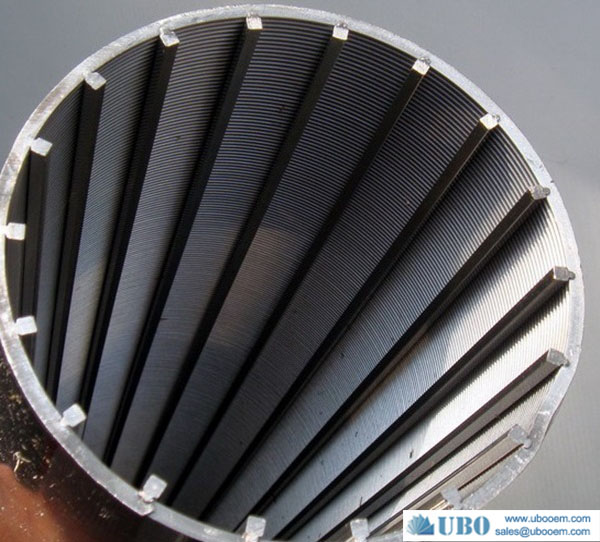

v shaped water well screen for industrial water is manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods.Each intersection point of these wires is fusion welded. The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening,hence the screen allows water (oil) to enter your well freely in ample quantities,while at the same time keeps the majority of sand and gravel out of the well.



v shaped water well screen for industrial water popularly used in making of water well screen. Stainless steel gravel pack screen pipe is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire).

v shaped water well screen for industrial water

Features for v shaped water well screen for industrial water:

1) Special continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.

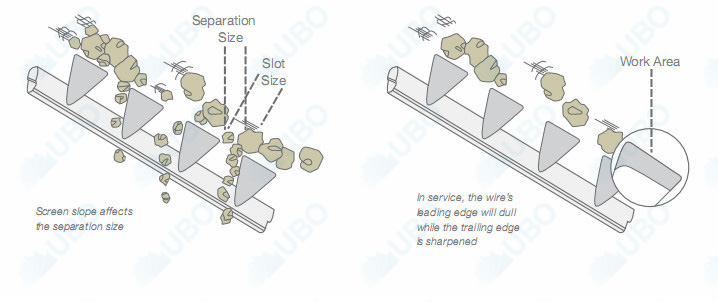

2) V-type profile of the structure to avoid clogging and ensure smooth flow.

3) Continuous long-term effective use of the pore.

4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.

5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Advantages for v shaped water well screen for industrial water:

1) Johnson well screens with high open area are more suitable for the construction of high-quality water wells and gas wells.

2) Low cost operation.

3) Reduce the abrasion of the pump

4) Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.


Specification of the v shaped water well screen for industrial water


v shaped water well screen for industrial water

Screen Area
(m2)
Sieve hole size (mm)
Seam Size (mm)
Screen Hole (T/D)
Screen Slot (T/D)
Inlet pulp consistency (%)
Motor Power (Kw)
0.3
Φ1.6~Φ3.5
0.1~0.55
50~80
30~50
1~4
22~55
0.6
Φ1.6~Φ3.5
0.1~0.55
90~160
60~100
1~4
30~75
0.9
Φ1.6~Φ3.5
0.1~0.55
135~250
90~150
1~4
37~90
1.2
Φ1.6~Φ3.5
0.1~0.55
180~320
120~190
1~4
45~110
1.5
Φ1.6~Φ3.5
0.1~0.55
200~380
140~230
1~4
55~132
2
Φ1.6~Φ3.5
0.1~0.55
260~500
220~300
1~4
75~160
3
Φ1.6~Φ3.5
0.1~0.55
400~700
300~450
1~4
90~220
4
Φ1.6~Φ3.5
0.1~0.55
500~1000
350~730
1~4
132~280

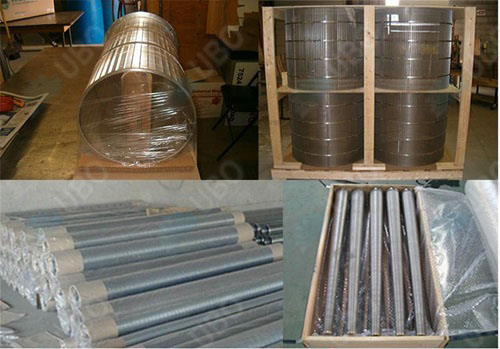

Production And Sales of v shaped water well screen for industrial water



v shaped water well screen for industrial water
