stainless steel well casing screen

Product Code: 2593
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:oil well , water well , geothermal well , sewage and industrial wastewater disposal plants

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of stainless steel well casing screen


The stainless steel well casing screen. The welded ring sand control wedge wire screen pipe have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screen pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

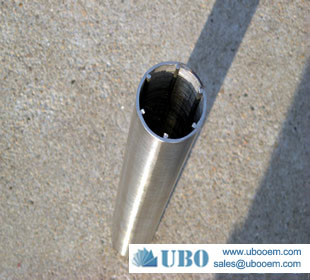

stainless steel well casing screen

Advantage of stainless steel well casing screen

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Application of stainless steel well casing screen

Use for oil well , water well ,  geothermal well ,  sewage and industrial wastewater disposal plants, food equipment, liquids filtration,cleaning treatment



stainless steel well casing screen

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the stainless steel well casing screen


stainless steel well casing screen



Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

Production And Sales of stainless steel well casing screen


stainless steel well casing screen
