continuous slot wedge wire wrapped screen pipe

Product Code: 3342
Category:Wedge Wire Screen Cylinders
Material:stainless steel 302,304,316,316L
Properties:wedge wire pipe
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of continuous slot wedge wire wrapped screen pipe


About the continuous slot wedge wire wrapped screen pipe

Wire wrapped screen is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities while at the same time keeps the majority of sand and gravel out of the well.

Wedge Wire continuous slot wedge wire wrapped screen pipe

Application for continuous slot wedge wire wrapped screen pipe:


The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, Wedge Wire Screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. Wedge Wire Screen can be used in many kinds of medium filtering.


Function and Characteristics for continuous slot wedge wire wrapped screen pipe:

1. The sand filter tubes have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.
2. Even filter pores, high permeability and anti-blocking.
3. Large filtering area, small flow resistance and high oil extraction rate
4. Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.
5. Multiple structure was welded together with stable filtering pore which made the strong non-deformability.

Specification of the continuous slot wedge wire wrapped screen pipe


Material:
stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70
Support Rod (mm):
Width : 1.00 1.80 2.00 3.00 4.00 5.00
Height : 2.00 2.50 3.00 5.00 6.00 8.00
Diameter:
Width Up To 2.5 meters
Length:
lengths up to 6 meters.
Slot size:
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note:
Other specifications can be customized according to your requirement

Wedge Wire continuous slot wedge wire wrapped screen pipe

specification (wedge wire ):

Wedge Wire continuous slot wedge wire wrapped screen pipe

specification (support rod):

Wedge Wire continuous slot wedge wire wrapped screen pipe

Note: this is the normal wire, others could customized



Outside Diameter Profile wire Rod wire Rod quantity Slot size Length
DN Inch mm mm mm   mm mm
20 3/4 26.9 1.5*2 2*3 12 0.1~0.25 45~3000
25 1 33.7 1.5*2 2*3 14 0.1~0.25 45~3000
32 1~1/4 42.4 1.5*2 2*3 16 0.1~0.25 45~3000
40 1~1/2 48.3 1.5*2 2*3 16 0.1~0.25 45~3000
50 2 60.3 1.5*2 2*3 18 0.1~0.5 45~3000
65 2~2/2 76.1 1.5*2 2*3 20 0.1~0.5 45~3000
80 3 88.9 1.8*2.5 2*3 24 0.1~0.5 45~3000
100 4 114.3 1.8*2.5 2*3 30 0.5~2 1000~6000
125 5 139.7 2.3*2.7 2*3 36 0.5~2 1000~6000
150 6 168.3 2.3*2.7 3*5 44 0.5~2 1000~6000
200 8 219.1 3.3*4.5 3*4.7 56 0.5~2 1000~6000
250 10 273 3.3*4.5 4*6 66 0.5~2 1000~6000
300 12 323.9 3.3*4.7 4*6 72 0.5~2 1000~6000
350 14 355.6 3.7*5 4*6 80 0.5~2 1000~6000
400 16 406.4 1.5*2 2*3 94 0.1~2 1000~6000
450 18 457 2*3 4*5 112 0.1~2 500~400
500 20 508 2*3 4*5 124 0.1~2 500~400
550 22 559 2*3 4*5 140 0.1~2 500~400
600 24 610 2*3 4*5 156 0.1~2 500~400
Siot:0.1mm~2mm    Tolerance:0.05

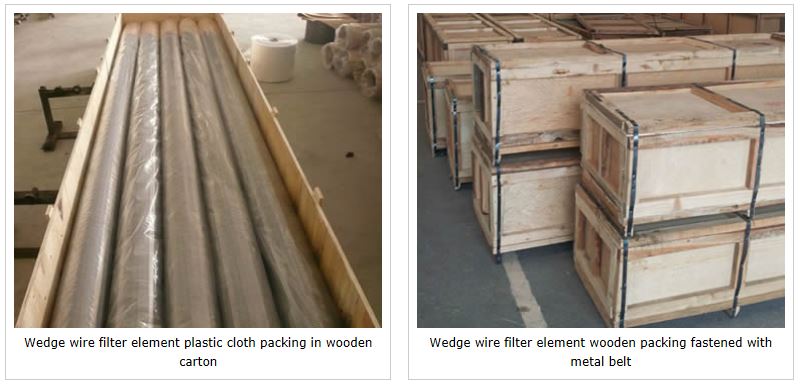

Production And Sales of continuous slot wedge wire wrapped screen pipe


Wedge Wire continuous slot wedge wire wrapped screen pipe

Wedge Wire continuous slot wedge wire wrapped screen pipe

Wedge Wire continuous slot wedge wire wrapped screen pipe
