anti-corrosive steel water well wire screen

Product Code: 2526
Category:Wedge Wire Screen Cylinders
Material:steel Q235
Properties:wedge wire screen
Application:widely used in vairous kinds of medium filtering

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of anti-corrosive steel water well wire screen

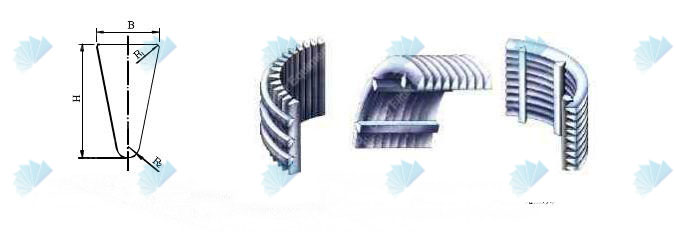

The anti-corrosive steel water well wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.

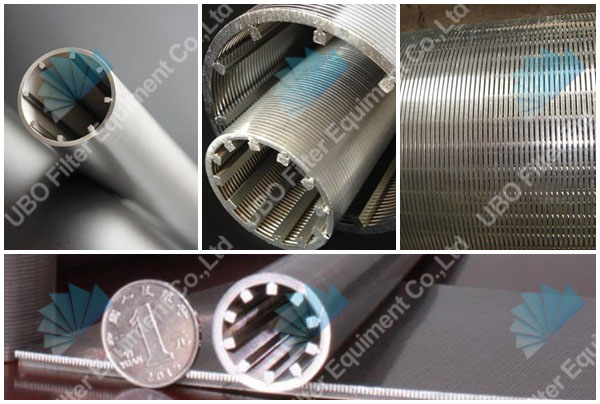

anti-corrosive steel water well wire screen

Characteristics of anti-corrosive steel water well wire screen

1.) The welded stainless steel water well screen is made up of rods and warp

2.) The rods usually has three kinds : round wire ; triangular wire ; trapezoid wire;

3.) The warstructure and high open area, as well as accurate slot dimension.

At the same time, water well screen has heat-resisting is triangular wire ( V-shaped wire )

Water well screen has a ,anti-corrosive,good machine capability, last long .

 Usages of anti-corrosive steel water well wire screen

1.) widely used in vairous kinds of medium filtering

2.) the strainer is a kind of filtered water tubing with the perforation, it could use with the deeep well pump, dive the water pump;

3.) as the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;

4.) the petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;

5.) the organic solution recycling filters

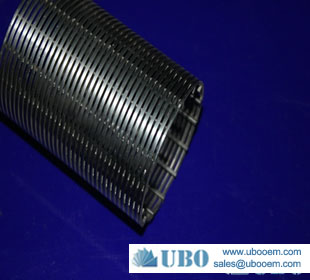

anti-corrosive steel water well wire screen

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the anti-corrosive steel water well wire screen


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

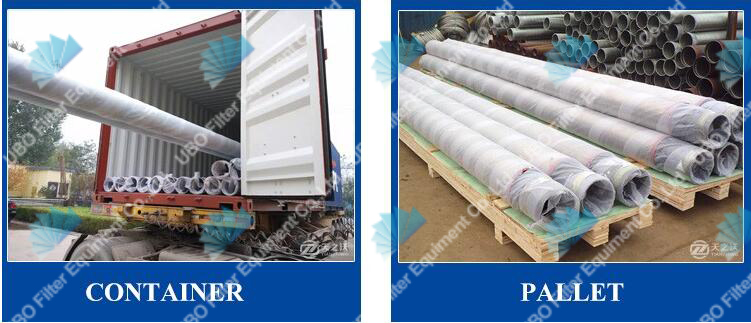

Production And Sales of anti-corrosive steel water well wire screen

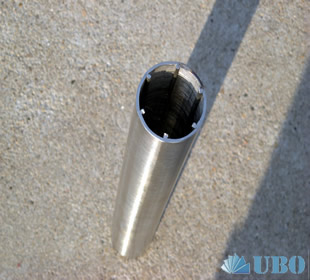

anti-corrosive steel water well wire screen
