Wedge Wire Sieve Bend Screen

Product Code: 2267
Category:Sieve Bend Screen
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:Filtration,industry, food filtration

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Wedge Wire Sieve Bend Screen


Wedge sieve band-arch screen Description Wedge sieve bend-arch screens are used for mechanical separation of solid particles from liquids which slide down on their surfaces. Wedge sieve screens with gravitational, forced and pressure inflow.

They are characterized by simple structure, easy service, low noise and vibration level and low costs of purchase and maintenance. Gap From 0,5mm Working wire According to the wedge wire screen catalogue – standard shaped wires Sb type or special Sbb type, other on customer’s request. Material According to the wedge wire screen catalogue (see also wedge wire screens – materials). Frame according to customer’s request. Dimensions According to customer’s request


Usages of Wedge Wire Sieve Bend Screen


1) Widely used in vairous kinds of medium filtering

2) As the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;

3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;


Features of Wedge Wire Sieve Bend Screen


1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

       Wedge sieve band-arch screen

Specification of the Wedge Wire Sieve Bend Screen


Material:stainless steel

Type:sieve bend screen

high quality wedge wire stainless steel sieve bend screen for Industrial

Profile Wire








Width(mm)
1.5
1.5
2.3
2.3
1.8
3.0
3.7
3.3
Height(mm)
2.2
2.5
2.7
3.6
4.3
4.7
5.6
6.3


Support Rod





Round
Width(mm)
2.3
2.3
3.0
3.7
3.3
Ø2.5~Ø5mm
Height(mm)
2.7
3.6
4.7
5.6
6.3

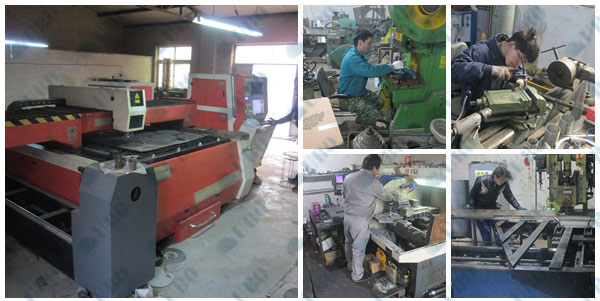

Production And Sales of Wedge Wire Sieve Bend Screen


production
