Wedge sieve band-arch screen

Product Code: 2901
Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:Wedge Wire Screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Wedge sieve band-arch screen


Wedge sieve band-arch screen has a greater screeing capactity than a flat screen due to forces exerted as material flows against the curved surface.

This Wedge sieve band-arch screen is mounted in a frame with the screen openings perpendicular to the flow.

In a typical feed situation,the leading edge of the wedge wire removes the water and fine particles through the over sized particles move across the top of the screen.

Separeation size in considerably smaller than screen openings,usually about one-half the opening size.
Sieve bend screens are ideal for sizing and dewatering applications in liquid/solid separation situations.It is extensively used for fine fiber removal in the starch industry.It also is used in other industries such as food processing waste water cleanup and corn wet milling.

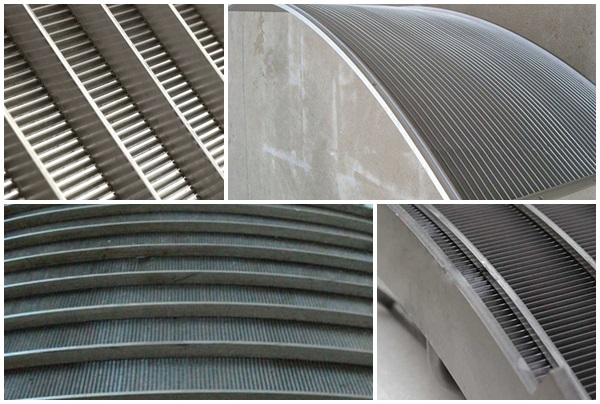

Wedge sieve band-arch screen

Advantage of Wedge sieve band-arch screen

Flat surface.
Excellent filtering performance.
Accurate distance between supporting profile.
Welded production process for solid and strong structure.
Good mechanical properties.
High strength.
High load capacity.
Corrosion and rust resistance.
Temperature resistance.
Chemical stability.

Application of Wedge sieve band-arch screen

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

Specification of the Wedge sieve band-arch screen


Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings

Production And Sales of Wedge sieve band-arch screen

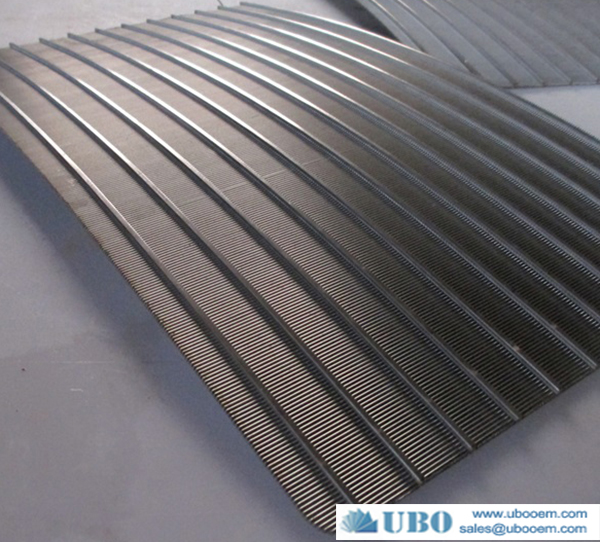

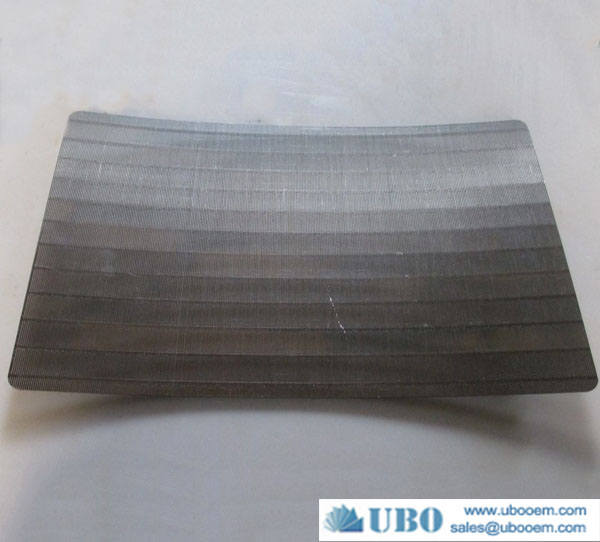

Wedge sieve band-arch screen
