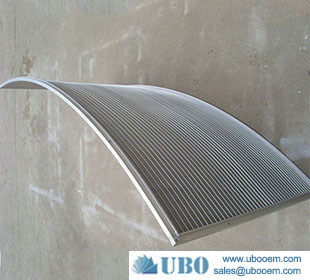

Wedge Wire Sidewall Screens

Product Code: 2228
Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Wedge Wire Sidewall Screens


    Johnson wedge wire water well filter screens are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a Johnson wedge wire water well filter screen on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.

Application for Wedge Wire Sidewall Screens:

The Johnson wedge wire water well filter screen are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.

Advantage for Wedge Wire Sidewall Screens:

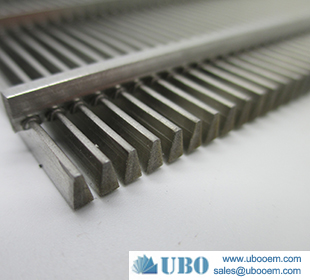

1. Non-clogging construction: The V-shape section plane of wedge wire screens (Johnson type screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.
2. Large Filtering Area: The consecutive slot of wedge wire screens (Johnson type screens) have wider open area,
and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better,
which can increase the water yield and prolong service time of the well.
3.Long service life Wire and support rods are all-welded, which makes wedge wire screens (Johnson types screens) more robust and longer life.
4.Excellent construction strength: The longitudinal support rods and the continuous slot make the wedge wire screens(Johnson type screens) have more excellent pressure-resistant performance.
5.Specifications and end connections of wedge wire screens(Johnson screens) can me fabricated according to customers’ requirements.

Wedge Wire Sidewall Screens

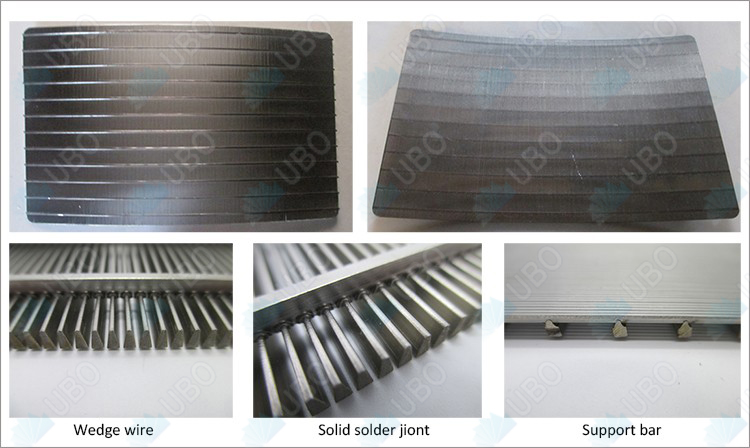

Specification of the Wedge Wire Sidewall Screens



Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings
