Sidewall Screens

Product Code: 1855
Category:Sieve Plate Screen
Material:Stainless Steel
Properties:wedge wire screen
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

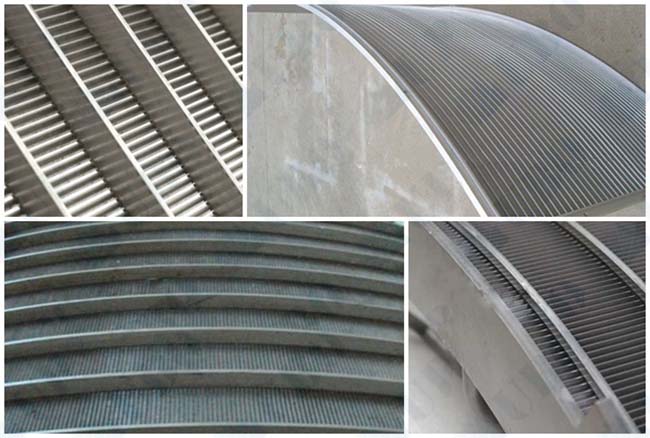

Description of Sidewall Screens


Sidewall Screens is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Sidewall Screens



Usages of  Wedge Wire Sidewall Screens:



1) Widely used in vairous kinds of medium filtering

2) As the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;

3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;

4) The organic solution recycling filter



Features of Wedge Wire Sidewall Screens:



1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .



Advantage of Wedge Wire Sidewall Screens:



1) Excellent roundness

2) Very good slot width precision

3) High mechanical load capacity

4) No form closure connection that would allow vibration of the profiled bars

5) Automated welding process for high-precision manufacturing

6) Perfectly adjusted screen basket profiles

7) Available for all screens

8) Surface finishing as required

Specification of the Sidewall Screens



Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings
