Water Well Screen SS Wedge Wire Wedge Wire Screen Pipe

Product Code: 3298
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment,mineral processing, coal-cleaning plant

Email to Us Start Order


Email:sales@ubooem.com

Description of Water Well Screen SS Wedge Wire Wedge Wire Screen Pipe

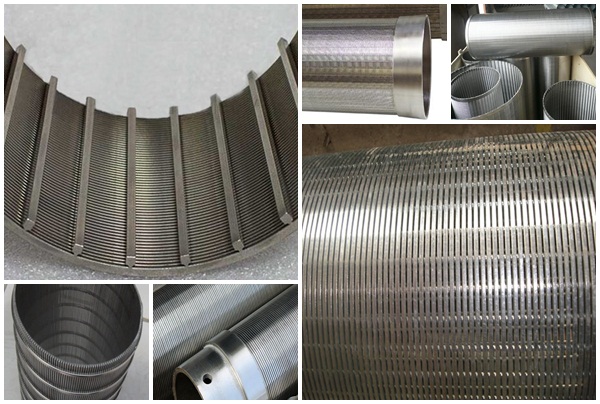

The stainless steel wedge wire screen tube is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.The warp is triangular wire (V-shaped wire). V-wire wedge wire screen pipes have a robust structure and large open area, as well as accurate slot dimension.


At the same time, stainless steel wedge wire screen tube have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

 Water Well Screen SS Wedge Wire<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> Pipe

Features of SS Wedge Wire Screen Pipe


1.Screens with large open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation
Screens with large open area shall favor groundwater filtration. Abundant water will reduce the water level’s down, thus to save energy consumption.
3.Under the same condition, large open area can make the speed of groundwater’s enter into the screen much slower than any other filtration apparatus,
which will avoid sand entering into screen because of high pressure, which reduce the abrasion of the pump.
4. Extending the service life of wells
Comparatively, groundwater’s entering into screen with larger open area is much easier than that entering into smaller open area screen.
The slow water flow will extend the service life of the wells.

Advantage of SS Wedge Wire Screen Pipe

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Application of SS Wedge Wire Screen Pipe

It is widely used in petrochemical, refining, water supply system, dirt water treament, hydraulic system, coal mining, and architecture industry.

With stainelss steel material and special welded structure, it can be easy cleaning by mechanical scraping or back flushing, that's why it is so popular among these industries.

Specification of the Water Well Screen SS Wedge Wire Wedge Wire Screen Pipe


Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded
