Centrifuge Baskets

Product Code: 1865
Category:Centrifuge Screens&Baskets
Material:stainless steel
Properties:wedge wire screen
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Centrifuge Baskets


Centrifuge Baskets

Centrifuge Baskets is a key component of the centrifugal machine and it's a high-speed rotating component.When working, it is not only to withstand vibration sieve basket loading, but also bear the severe impact of the water and the coal, so it need relatively high strength and precision.

Centrifuge Baskets Material:

The main material of sift basket of centrifuge includes stainless steel and galvanized wire.
Features:
Welding quality is well and structure is solid.
The screen has uniform slit screen and smooth screen surface, high opening and strong through the sieve.
Reducing the installation time and effort.
Size of the main process is accurate and error is small.

Centrifuge Baskets Application:

Sift basket of centrifuge is mainly used in dehydration, coal, chemical and metallurgical industries.

Ubo centrifugal screen baskets are the strongest and most robust in the mineral processing industry. The baskets are built to exacting specifications and quality standards. There are models to suit most centrifugal dryers. Screen wires are welded to support rods at every junction to ensure strong, rigid construction.

Ubo offers a variety of wire shapes and configurations which allow our engineers to design the basket for the specific requirements of the application. Wire shapes are designed to maximize wear life and open area. The relief angle is reduced to better maintain constant slot integrity during the life of the basket.

Each basket is balanced before shipping to ensure lasting service. Hard-chroming of the wear surface is also available as an option.

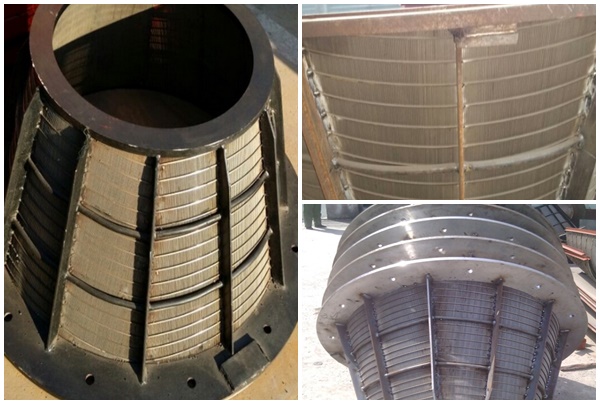

Centrifuge Baskets

Specification of the Centrifuge Baskets


Centrifuge Baskets Specification:

Ubo offers a variety of wire shapes and configurations which allow our engineers to design the basket for the specific requirements of the application. Wire shapes are designed to maximize wear life and open area. The relief angle is reduced to better maintain constant slot integrity during the life of the basket.

Model

Large edge diameter (mm)

Inside diameter (mm)

Half-cone angle (°)

Max height (mm)

Aperture  (mm)

WZ-1300K

φ1312



13°

700

0.5

ZL-1000

φ1015



13°

554

0.5

----9

φ919



20°

475

0.5

H--1200



φ1200



450

0.3

H--800



φ800



400

0.3

H--800



φ320



90

0.3

H2--800



φ801



290

0.3

Production And Sales of Centrifuge Baskets


Packing:

Each basket is balanced before shipping to ensure lasting service. Hard-chroming of the wear surface is also available as an option.
