Vibrating sieve screen plate

Product Code: 2201
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve plate screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Vibrating sieve screen plate


    Flat welded wedge wire panels offer a perfectly flat and smooth surface with rectangular openings. Flat Wedge Wire Screen Panels can be constructed using rectangular support rods or round support rods. Flat Wedge Wire Screen Panels can be designed to maximize the open area, strength and wear life to suit any application. Welded Wedge Wire Screens are made from V shaped profile wire, with an unique welding process.

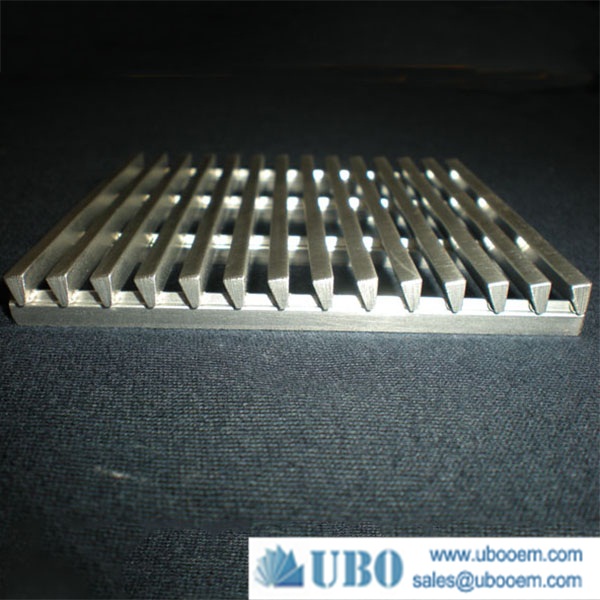

Vibrating sieve screen plate

Application for Vibrating sieve screen plate:

Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Characteristic for Vibrating sieve screen plate:

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles

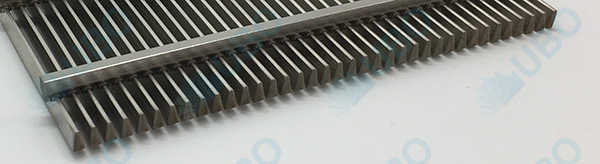

Vibrating sieve screen plate

Specification of the Vibrating sieve screen plate

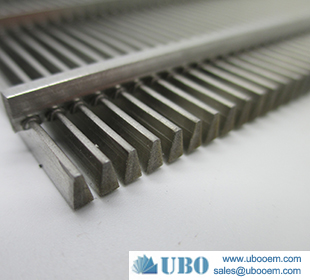

Vibrating sieve screen plate



Surface Profile

W
H

Material

10S

0.75
1.425

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

11SL

10.75
1.8

22S

1.8
3.7

4S

0.45
1.2

50SL

3.4
7.5



Surface Profile
W
H
Material
Q22
2
2.28

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

Q35
3
5
Q53
4
3
D56
4
5.6
D45
3.8
6.0


Production And Sales of Vibrating sieve screen plate


Vibrating sieve screen plate
