Vibrating Screen Panels

Product Code: 1857
Category:Sieve Plate Screen
Material:stainless steel
Properties:wedge wire screen
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Vibrating Screen Panels

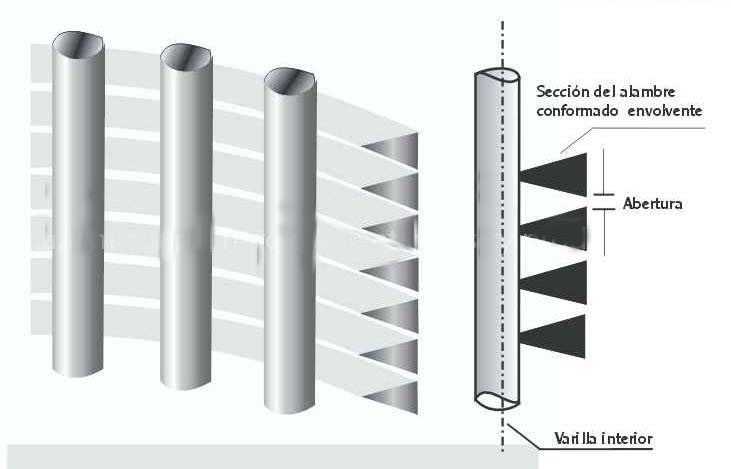

Vibrating Screen Panels consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

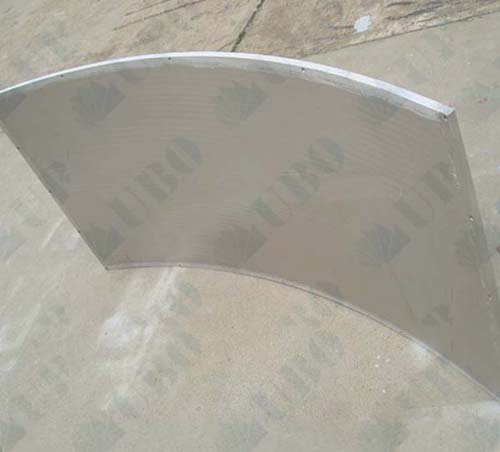

Vibrating Screen Panels


Usages for Vibrating Screen Panels:


Sieve bend screening unit is the answer to many de-watering, sizing, and wastewater cleanup problems. Typical uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.


Advantages for Vibrating Screen Panels:


-- High open area

-- Quick filtration

-- Economical solution, also for refurbishing of existing lauter tuns

-- Accurate filter rating

-- Longer service life

-- Low maintenance costs

-- Possible to build-in in existing equipment(custom made)

Specification of the Vibrating Screen Panels

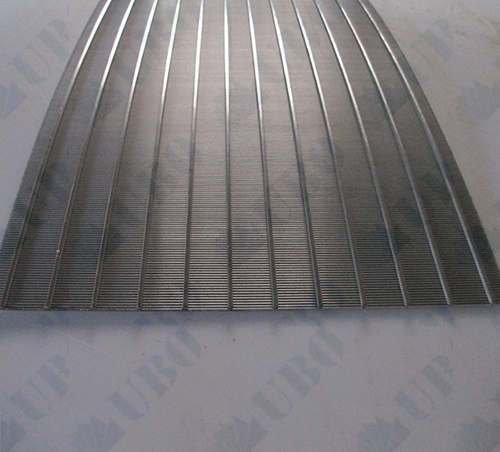

Vibrating Screen Panels

Model NO. Screen Area (m2) Sieve hole size (mm) Seam Size (mm) Screen Hole (T/D) Screen Slot (T/D) Inlet pulp consistency (%) Motor Power (Kw)
ZNS 0.3 0.3 Φ1.6~Φ3.5 0.1~0.55 50~80 30~50 1~4 22~55
ZNS 0.6 0.6 Φ1.6~Φ3.5 0.1~0.55 90~160 60~100 1~4 30~75
ZNS 0.9 0.9 Φ1.6~Φ3.5 0.1~0.55 135~250 90~150 1~4 37~90
ZNS 1.2 1.2 Φ1.6~Φ3.5 0.1~0.55 180~320 120~190 1~4 45~110
ZNS 1.5 1.5 Φ1.6~Φ3.5 0.1~0.55 200~380 140~230 1~4 55~132
ZNS 2 2 Φ1.6~Φ3.5 0.1~0.55 260~500 220~300 1~4 75~160
ZNS 3 3 Φ1.6~Φ3.5 0.1~0.55 400~700 300~450 1~4 90~22

Production And Sales of Vibrating Screen Panels


Vibrating Screen Panels
