Stainless steel304 Filter nozzle for water

Product Code: 2488
Category:Water Strainer & Nozzle
Material:Stainless steel304
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Stainless steel304 Filter nozzle for water


Stainless steel304 Filter nozzles are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

Flow capacity of one pieces of filter nozzle could handle 3 m3/hour. Up to this flow capacity, almost no pressure loss happened. But to handle higher flow capacity, the pressure loss of each nozzle will be increasing accordingly. This fillter nozzle type is the cheapest sellection for filter media retention

Advantages of Stainless steel304 Filter nozzle for water

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Application of Stainless steel304 Filter nozzle for water

It use in the water softening treatment equipment, replace Polypropylene(PP) filter. down-flow reactors for liquid/solid or gas/solid separation.

Stainless steel304 Filter nozzle for water

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the Stainless steel304 Filter nozzle for water


Material:stainless steel

Type:wedge wire screen filter cap

Stainless steel304 Filter nozzle for water

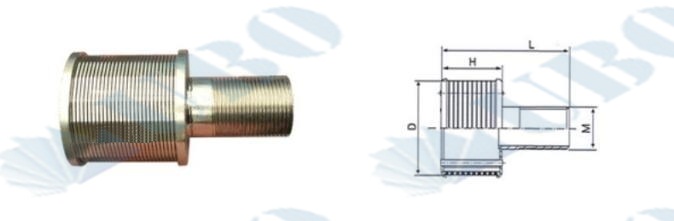

Type Slot Dimension Flow area
D H L M
A 0.25 Φ45 40 90 M20 450m3
A1 0.25 Φ45 40 90 M24 500m3
(flow 0.5T/H)
B 0.25 Φ53 45 100 M24 570m3
(flow 1T/H)
B1 0.25 Φ53 45 100 M32 600m3
(flow 1.5T/H)
B3 0.25 Φ57 55 110 M32 800m3
(flow 2T/H)
C 0.2-0.5 Φ70 45 110 M32 800m3
C1 0.2-0.5 Φ70 55 120 M32 1000m3
