| Category: | Sintered Powder Filter |
| Material: | Bronze powder |
| Properties: | Sintered filter |
| Application: | Filtration |
Bronze powder sintered filter cap are made of bronze,stainless steel and titannium ball or irregular powders.This filter elements via high temperatures sintering process to be any shape by the moulds.
Bronze powder sintered filter cap are widely used in chemical,pertroleum,metallurgy,air carft,gas,electronic,pharmacy,pneumatic,air regulator components,pressure filter elements,air filters and etc fields.
application:
1.Filtering of Solid & Liquid
2.Filtering of Liquid & Gas
3.Filtering of Gas & Liquid
Filter Rating:
Bronze powder sintered filter cap have different aperture,porosity and filter rating,the general filter rating are 0.1micron to 80micron.
Feature:
1.Working Temperature:-200—1000°C
2.Corrosion Resistance
3.High Filtering Efficiency
4.Metallic capacities, such as noise reduction,hot resistance,heat conduction,high strength and etc
5.Easy to welding and long working life

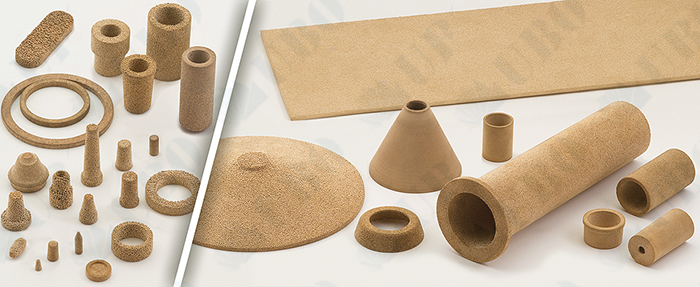

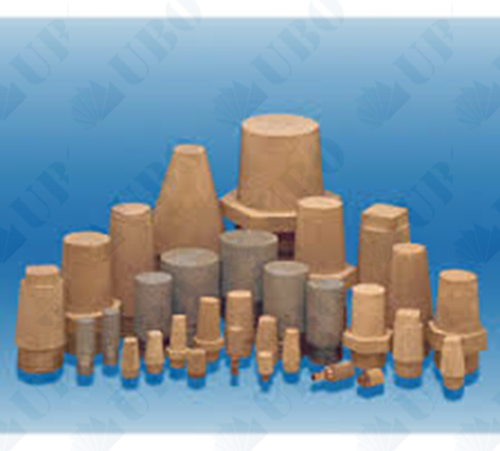

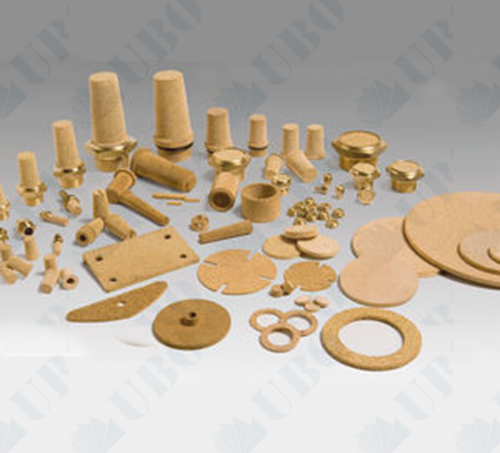

Filter Shape:
Could be cartridge filters,disc filters ,cup filters,cap filters,filter palte and etc.
| Bronze powder sintered filter cap | ||||||
|
Filtering level |
the particles in the liquid blocking scales um value | permeability (less than) |
Thickness (mm) |
Compression strength |
||
|
Filtration Efficiency 98% |
filtration efficiency 99.9% |
the permeability coefficient 10-12 |
Permeability m3/H..kpa |
|||
| N7 | 4 | 6 | 0.18 | 18 | 3 | 3 |
| N6 | 7 | 9 | 0.4 | 40 | 3 | 3 |
| N5 | 10 | 14 | 0.8 | 80 | 3 | 2.5 |
| N4 | 16 | 20 | 1.61 | 160 | 3 | 2.5 |
| N3 | 25 | 33 | 3.00 | 320 | 3 | 2.5 |
| N2 | 45 | 78 | 6.02 | 600 | 3 | 2.5 |
| N1 | 80 | 100 | 9.05 | 900 | 3 | 2.5 |
