Filter Nozzle For Water Treatment

Product Code: 3375
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Filter Nozzle For Water Treatment


Wedge Wire Screen Nozzle is used in liquid/solid or gas/solid separation.


The wedge wire screen design of each nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow thus almost eliminating the channeling, wall effects, or dead zones.

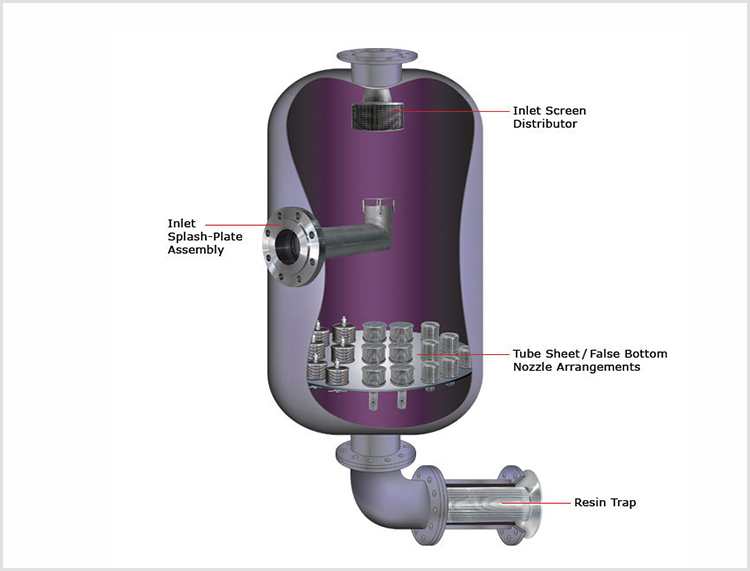

Common applications include under drain media retention elements or flow distributors in demine realizers and water softeners in pressure and gravity sand filters, ion exchange processes Sand filters, Activated carbon processes, etc.

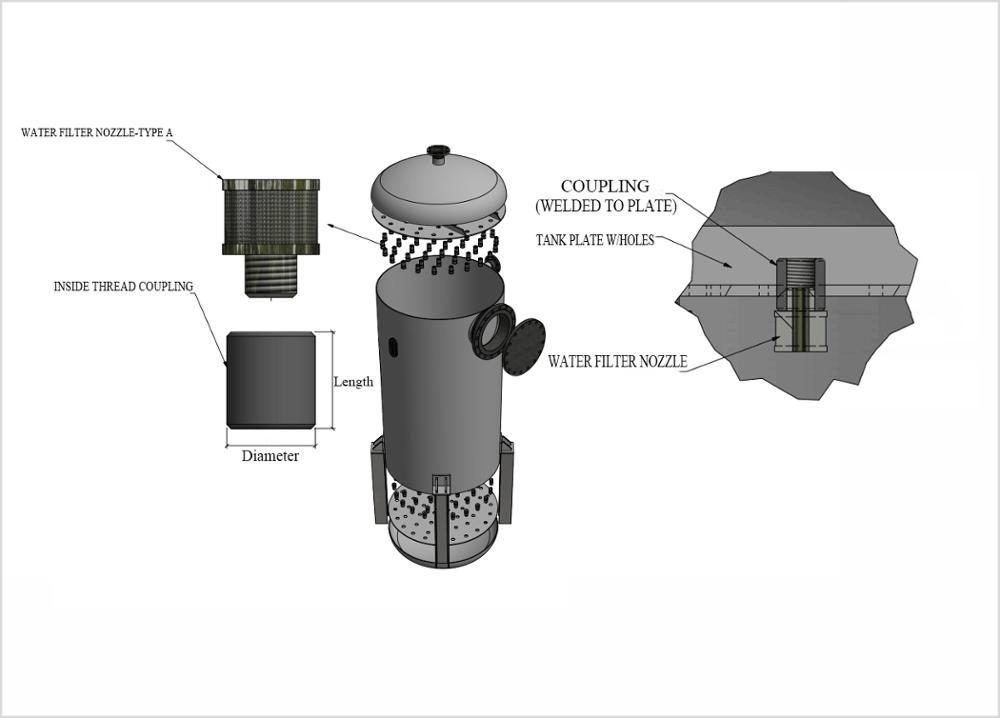

Nozzles can also be used as collectors at the bottom of the vessels by installing a number of nozzles uniformly across a tray plate.


The combination of a high open area and a non-plugging slot design makes this nozzle/collector application popular.

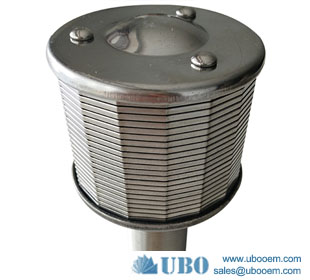

Filter For Water Treatment Wedeg Wire Screen NozzleFilter For Water Treatment Wedeg Wire Screen Nozzle

Application of Wedge Wire screen filter nozzles

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filtration of water petrol resin and other mediums. It can be widely used in water treatment, water softening, conversion of seawater into freshwater, the filter of food chemistry. Also, it can replace the Polypropylene ( PP ) filter, sand filters, carbon filters, ion exchange systems, carbon absorbers, media retention, backwash retention, resin retention, and resin traps.

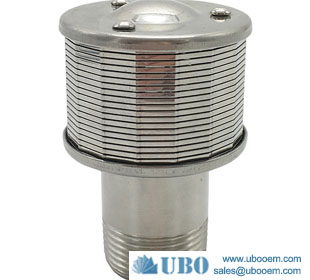

Filter For Water Treatment Wedeg Wire Screen NozzleFilter For Water Treatment Wedeg Wire Screen Nozzle

More type of wedge wire filter nozzle

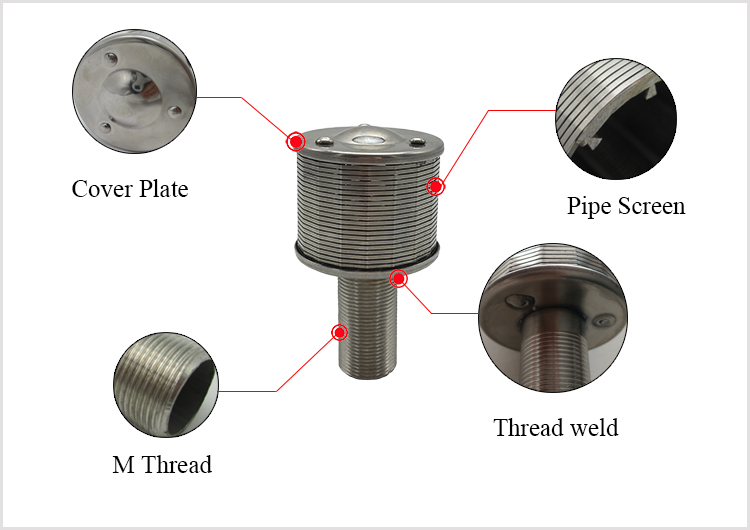

Filter For Water Treatment Wedeg Wire Screen Nozzle

Specification of the Filter Nozzle For Water Treatment


stainless steel slimline nozzle internal filters

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

YUBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

YUBO-1.0

0.25

53

45

90/request

1.0

YUBO-1.5

0.25

57

45

90/request

1.5

YUBO-2.0

0.25

57

55

100/request

2.0

YUBO-2.5

0.25

70

55

100/request

2.5

YUBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* YUBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread according to requirement

Production And Sales of Filter Nozzle For Water Treatment


Filter For Water Treatment Wedeg Wire Screen Nozzle
