SS filter nozzle for ion exchange system

Product Code: 3558
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Author: Sally
Email:sales@ubooem.com

Description of SS filter nozzle for ion exchange system


SS filter nozzle are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen. It’s a new type filter component. The filter nozzle has a high precision filtration ability. The minimum slot size is 20 micron.

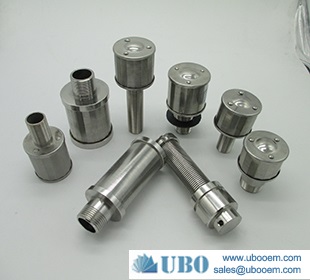

SS filter nozzle

SS filter nozzle

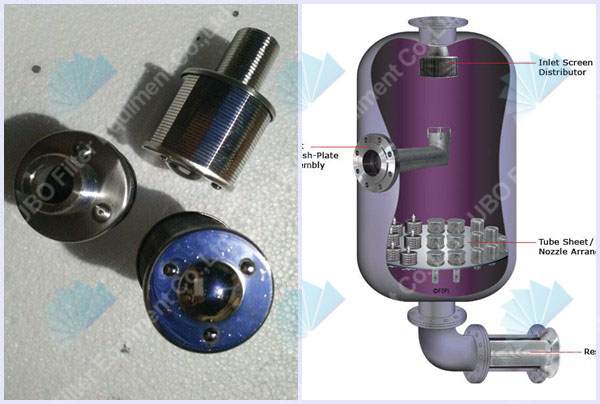

Application of wedge wire screen filter nozzle for ion exchange system



Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

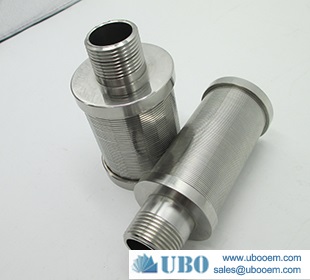

SS filter nozzle

SS filter nozzle



Advantages of wedge wire screen filter nozzle for ion exchange system



Excellent roundness

Very good slot width precision

High mechanical load capacity

No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry

Automated welding process for high-precision manufacturing

Perfectly adjusted screen basket profiles

Available for all screens

Surface finishing as required

SS filter nozzle

Specification of the SS filter nozzle for ion exchange system


SS filter nozzle
Type Slot
(mm)
Dimension Flow Rating
(M3/H)
D(mm) H(MM) L(MM) Thread Fittings
UBO-0.5 0.25 45 45 90/request M,NPT, G, PT(BSPT),Z,BSP, request SS Gasket,
Rubber gasket,
Nut, request
0.5
UBO-1.0 0.25 53 45 90/request 1.0
UBO-1.5 0.25 57 45 90/request 1.5
UBO-2.0 0.25 57 55 100/request 2.0
UBO-2.5 0.25 70 55 100/request 2.5
UBO-3.0 0.25 70 70 120/request 3.0
  * All the above size are the normal size. Customized size is possible.
* UBO could help to design according to the application and requirement.
* The nozzles customized range as below:
1. Slot range: 0.05-2mm
2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application
3. Thread according to requirement

Production And Sales of SS filter nozzle for ion exchange system


SS filter nozzle
