Side Hill Screen Surfaces

Product Code: 2227
Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Side Hill Screen Surfaces


Wedge wire water screening screen is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening



Application for Side Hill Screen Surfaces:



The Johnson wedge wire water well filter screen are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.



Features for Side Hill Screen Surfaces:



1) The gravity sieve has high yield and good screening effect

2) The gravity bent sieve is very safety,no caulking and long service life.

3)The gravity curved sieve has reasonable structure and no moving parts.

4) The gravity sieve has beautiful appearance and small area

5) The gravity sieve has easy operation,strong adaptability and stable process.

6) The mechanical center of gravity is low, the balance is good, the rotational speed is reasonable, the mechanical performance is stable and reliable.

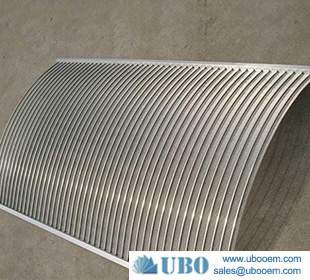

Side Hill Screen Surfaces



Specification of the Side Hill Screen Surfaces

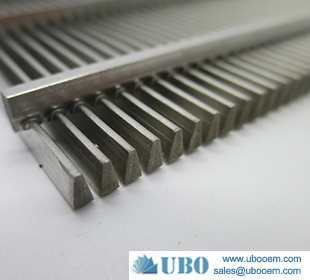

Side Hill Screen Surfaces



Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Radian:as your requirement
Slot Size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Width
from 25mm to 1200mm.
End Connection
Plain beveled ends, flanged or threaded couplings

Production And Sales of Side Hill Screen Surfaces


Side Hill Screen Surfaces
