Sieve Bend Screen / Side Hill Screen Surfaces

Product Code: 2852
Category:Sieve Plate Screen
Material:Stainless Steel
Properties:Wedge Wire Screen
Application:water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Sieve Bend Screen / Side Hill Screen Surfaces


Sieve Bend Screen / Side Hill Screen Surfaces is a high efficiency curve separate madia by wet material pressure.

Vee wedge wire have high strenthen and carrying capacity,the V wire make sure the screen will not block,easy clean,working very long time.The wedeg wire parabolic filter made by Nanrui with high accuracy and can instead of all Johnson screen.

Material: AISI 302,AISI 304,AISI 304L,AISI 316,AISI 316L.,polyester frame.

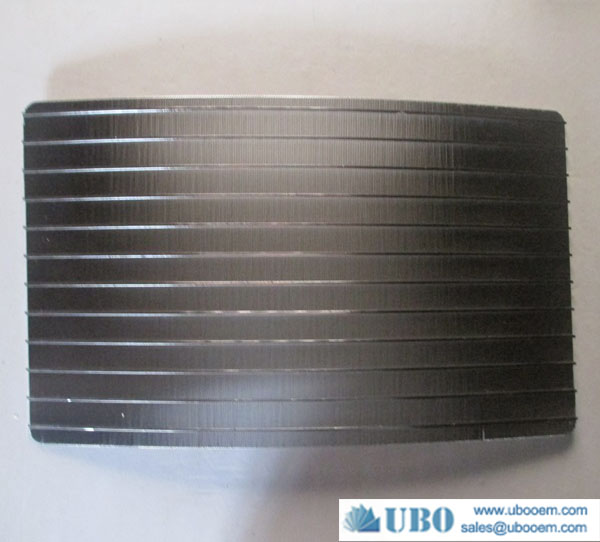

Sieve Bend Screen / Side Hill Screen Surfaces

Advantages of Sieve Bend Screen / Side Hill Screen Surfaces

flatness to within tight tolerances
no weakening of the welds, because of flattening (and no stress corrosion problems as a result)
accurate distance between support profiles
possibility of different support wires in one screen
possibility of variable spacing between support wires in one screen

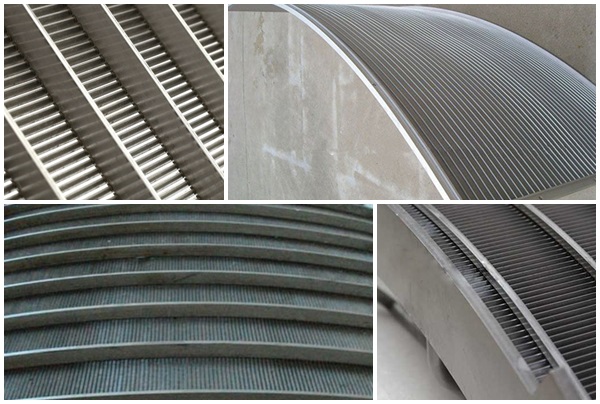

Constructions of Sieve Bend Screen / Side Hill Screen Surfaces

A combination of different support profiles and pitches within one flat screen is possible
Variable spacing between support wires in one screen
Curved screens; curve direction and filtration direction are to be determined by the customer.Frames and reinforcements can be designed and calculated on request, provided that we know the temperature, supports and differential pressure.

Specification of the Sieve Bend Screen / Side Hill Screen Surfaces



Application

Slot Opening

Wire Width

GPM / FT

Coal, 20% solids

 .020"

.063"

120

Coal, 20% solids

 .020"

.093"

100

Cranberry dewatering

 .020"

.063"

100

Seafood, plant effluent

 .020"

.063"

60

Coal, 20% solids

 .040"

.093"

160

Coal, 20% solids

 .040"

.120"

120

Vegetable, primary

 .040"

.093"

130

Meat Packing wash down

 .040"

.093"

60

Coal

 .060"

.093"

210

Municipal, primary

 .060"

.093"

150

Dairy, wash down

 .060"

.093"

120

Wood Fiber plant effluent

 .060"

.093"

80

Vegetable, waste

 .125"

.093"

350

The effective range of slot openings for a gravity-fed cross flow sieve bend screen is
generally considered to be .015" to 1/8".  The installation angle of a sieve bend screen is
 usually 50 to 60 degrees from the horizon.

Production And Sales of Sieve Bend Screen / Side Hill Screen Surfaces

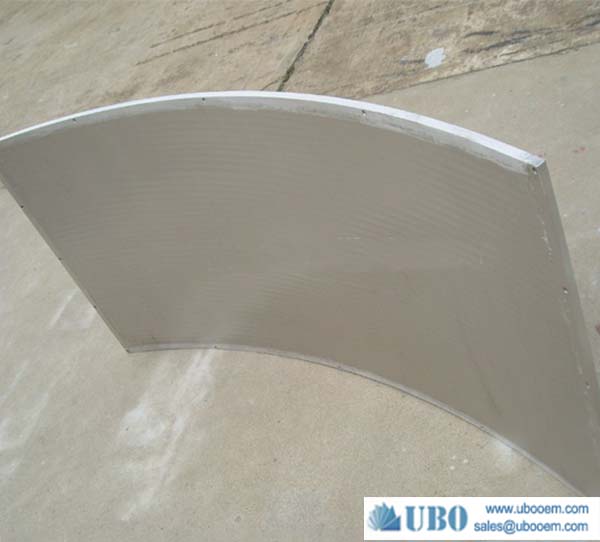

Sieve Bend Screen / Side Hill Screen Surfaces
