SS316 Double tube type water spray nozzle for water cleaning

Product Code: 2735
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

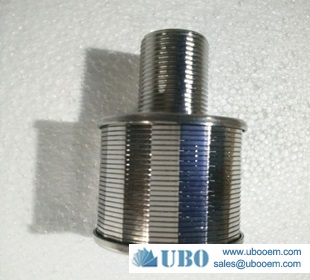

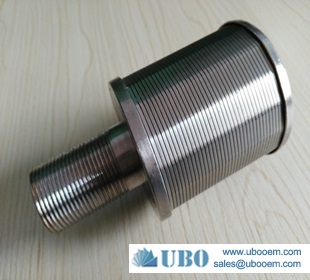

Description of SS316 Double tube type water spray nozzle for water cleaning


UBO's double tube type water spray nozzles are made of stainless steel or Hastelloy C wedge wire screen, It use in the water softening treatment equipment. replace Polypropylene(PP) filter.

SS316 Double tube type water spray nozzle for water cleaning

Characteristics of SS316 Double tube type water spray nozzle for water cleaning

1. Excellent roundness

2.Very good slot width precision

3.High mechanical load capacity

4,No form closure connection that would allow vibration of the profiled bars

5.Automated welding process for high-precision manufacturing

6.Perfectly adjusted screen basket profiles

7.Available for all screen

8.Surface finishing as required

Uses of SS316 Double tube type water spray nozzle for water cleaning

The stainless steel wedge wire 316L water screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

SS316 Double tube type water spray nozzle for water cleaning

Specification of the SS316 Double tube type water spray nozzle for water cleaning


Catalogue Item

Slots mm

Thread

ΦAmm

Thread length L1mm
Shaft L2 mm

L3 mm

Type B

0.05, 0.1, 0.2, 0.3 , 0.5, 1.0

1¼"WW

32

25,30,45

80,110,

40,200,

250,300,

350,…

45,50,55,

 60,70,80

M30

30*3.5

30

G 3/4"

26.5

20,45,+5+5...

1"WW

25.4

20,45,+5+5...

M24

24

20,45,+5+5..

Production And Sales of SS316 Double tube type water spray nozzle for water cleaning


SS316 Double tube type water spray nozzle for water cleaning
