| Category: | Water Strainer & Nozzle |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request |
| Properties: | wedge wire screen |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |

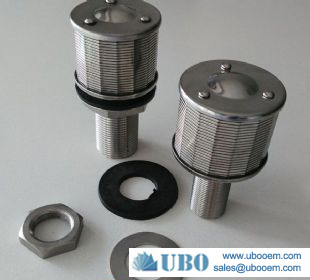

stainless steel water filter nozzle for water cleaning through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure, 0.1mm slot gap, and can be select by client in any way.
1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.
|
|
Type |
Ton |
Slot Opening |
Size |
0.2-0.25mm slot opening Area of through-flow mm2(reference) |
|||
|
D |
L1 |
L |
M |
|||||
|
1 |
SH45-1-C |
0.5 |
0.2-0.5 |
45 |
45 |
95 |
24 |
500 |
|
2 |
SH53-2-B |
1 |
0.2-0.5 |
53 |
45 |
100 |
24 |
570 |
|
3 |
SH53-2-C |
1.5 |
0.2-0.5 |
53 |
50 |
110 |
32 |
700 |
|
4 |
SH57-3-B |
2 |
0.2-0.5 |
57 |
45 |
110 |
32 |
600 |
|
5 |
SH70-4-B |
3 |
0.2-0.5 |
70 |
55 |
120 |
32 |
1000 |
