SS316 Resin Trap filter Hub and Header Lateral

Product Code: 2884
Category:Header-Lateral
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:Wedge Wire Screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of SS316 Resin Trap filter Hub and Header Lateral


1) Product details

SS316 Resin Trap Screen Hub and Header Lateral is made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

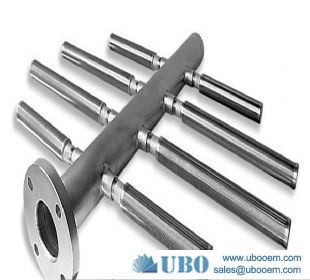

SS316 Resin Trap filter Hub and Header Lateral

2)productive process

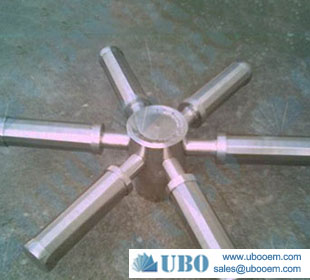

SS316 Resin Trap Screen Hub and Header Lateral

Precise measurement



SS316 Resin Trap Screen Hub and Header Lateral

3)Application

SS316 Resin Trap Screen Hub and Header Lateral application in deep well pump to dive the water pump,  in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Specification of the SS316 Resin Trap filter Hub and Header Lateral


Type
Slots
ФA
ФB
L1
L2
L3
Pipe no
Flange1 DN
Flange2 DN
Length L
99,127,157,
199,224,254,
284,326,351,
538,508,607,
635,665,707,
792,834,861,
889,919,
1016,1046,
1088
AME
0.05
0.1
0.2
0.3
0.5
1
32
40
57
76
89
76
89
108
133
159
219
1100
1280
1500
1700
1800
2000
2500
3200
420
480
600
680
720
1100
1280
1500
1700
1800
6
8
10
12
25
32
40
50
65
80
50
65
80
100
125
150

Production And Sales of SS316 Resin Trap filter Hub and Header Lateral


SS316 Resin Trap filter Hub and Header Lateral
